Rear Brake Caliper: Removal
WARNING: This page is about a different car, the 2013 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Do not use any fluid other than clean brake fluid meeting manufacturer's specification. Additionally, do not use brake fluid that has been previously drained. Following these instructions will help prevent system contamination, brake component damage and the risk of serious personal injury.
WARNING:
Carefully read cautionary information on product label. For emergency medical information seek medical advice. In the USA or Canada on Ford/Motorcraft products call: 1-800-959-3673. For additional information, consult the product Material Safety Data Sheet (MSDS) if available. Failure to follow these instructions may result in serious personal injury.
NOTE:
Do not spill brake fluid on painted or plastic surfaces or damage to the surface may occur. If brake fluid is spilled onto a painted or plastic surface, immediately wash the surface with water.
- Remove the wheel and tire. For additional information, refer to WHEELS AND TIRES .

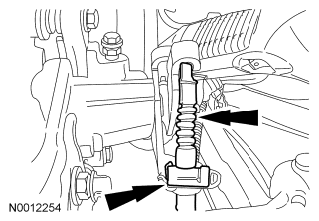

- Remove the retaining clip and the parking brake cable and conduit from the brake caliper.
- Remove the brake caliper flow bolt and discard the 2 copper washers.
- Remove the 2 brake caliper guide pin bolts and the brake caliper.
- Inspect the brake caliper.
- If leaks or a damaged piston boot are found, install a new brake caliper.
