Differential Cooler: Removal

WARNING: This page is about a different car, the 2013 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front bumper cover. Refer to BUMPERS .

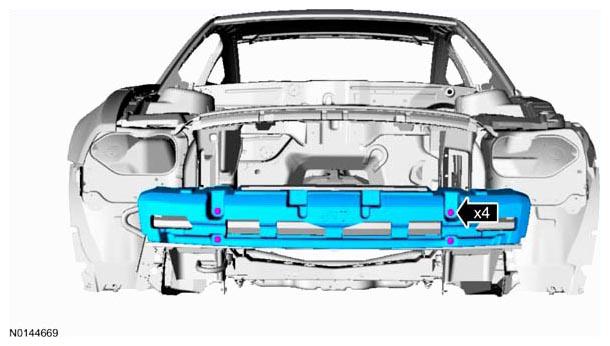

  2. G08642484
    • To install, tighten the bolt to 25 Nm (18 lb-ft).

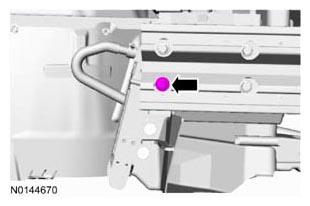

      G08642485
    • To install, tighten the bolt to 6 Nm (53 lb-in).

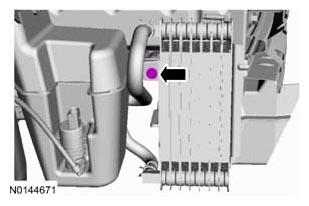

      G08642486

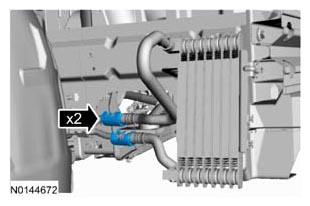

  5. G08642487

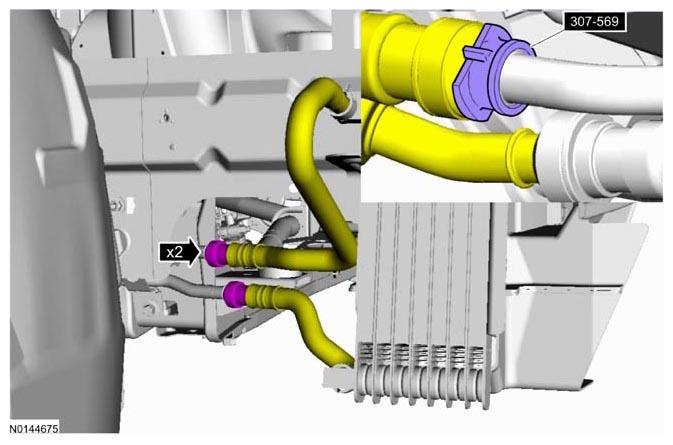

  6. Special Tool(s): Transmission Cooler Line Disconnect Tool 307-569.
    G08642488
  7. G08642489

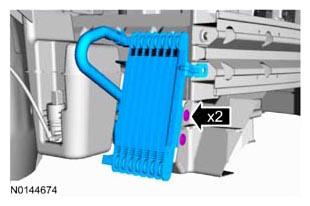

  8. G08642490
