Differential Case and Ring Gear - Traction-Lok: Notes
WARNING: This page is about a different car, the 2013 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.
SPECIAL TOOLS
| 2 Jaw Puller 205-D072 (D97L-4221-A) or equivalent |
|
| Gauge, Differential Clutch 205-022 (T66L-4204-A) |
|
| Gauge, Differential Clutch 205-135 (T80P-4946-A) |
|
| Gauge, Differential Clutch 205-270 (T87T-4946-A) |
|
| Installer, Differential Side Bearing 205-010 (T57L-4221-A2) |
|
| Step Plate 205-D016 (D80L-630-5) or equivalent |
MATERIAL SPECIFICATIONS
| Item | Specification |
|---|---|
| Additive Friction Modifier XL-3 (US); CXL-3 (Canada) |
EST-M2C118-A |
| Maximum Strength Retaining Compound Loctite® 638™ |
- |

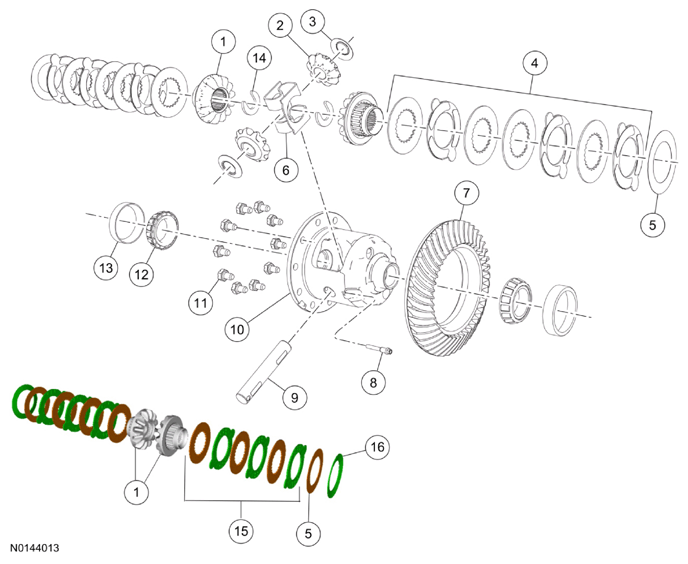

| Item | Part Number | Description |
|---|---|---|
| 1 | 4236 | Differential side gear |
| 2 | 4215 | Differential pinion gear |
| 3 | 4230 | Differential pinion gear thrust washer |
| 4 | 4947 | Differential clutch pack (with differential S-type clutch spring) |
| 5 | 4A324 | Rear axle differential clutch shim |
| 6 | 4214 | Differential S-type clutch spring |
| 7 | 4209 | Differential ring gear |
| 8 | 387426-S101 | Differential pinion shaft lock bolt |
| 9 | 4211 | Differential pinion shaft |
| 10 | 4204 | Differential case |
| 11 | 4216 | Differential ring gear bolt |
| 12 | 4221 | Differential bearing |
| 13 | 4222 | Differential bearing cup |
| 14 | 4N237 | Axle shaft U-washer |
| 15 | 4767 | Differential clutch (without differential S-type clutch spring) |
| 16 | 4214 | Belleville washer (without differential S-type clutch spring) |
