Seat - Front: Notes
WARNING: This page is about a different car, the 2013 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

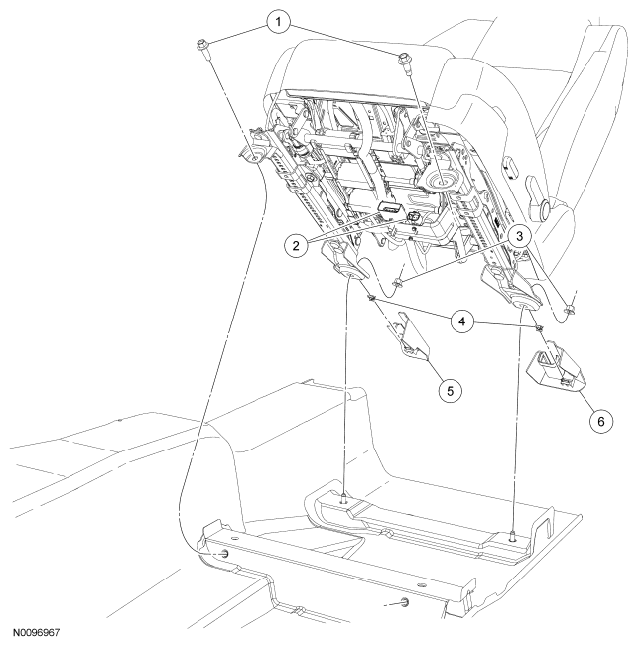

LH shown in illustration, RH similar.
| Item | Part Number | Description |
|---|---|---|
| 1 | - | Seat mounting front bolts (2 required) |
| 2 | - | Seat electrical connectors (part of 14A699) |
| 3 | W520113 | Seat mounting rear nuts (2 required) |
| 4 | - | Rear nut cover retainers (2 required) (part of 61748) |
| 5 | 61748 | Rear nut cover, inboard |
| 6 | 61748 | Rear nut cover, outboard |
