Seat Side Air Bag Module

WARNING: This page is about a different car, the 2013 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.

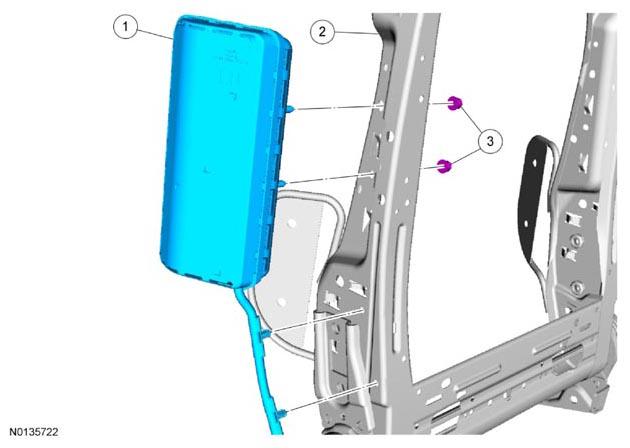

NOTE: LH shown in illustration, RH similar.
G08646697
Item Part Number Description
1 611D11 Side air bag module
2 61019 Backrest frame
3 N620480 Side air bag module nuts
