Seat Cushion - Driver, Power
WARNING: This page is about a different car, the 2013 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.

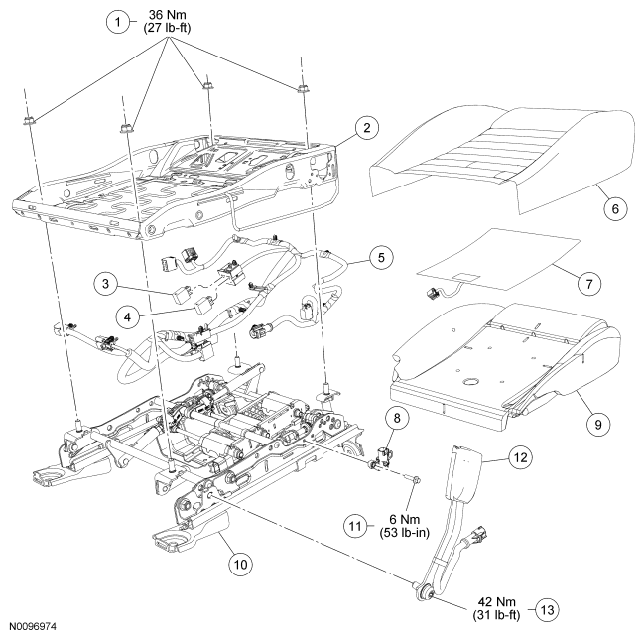

| Item | Part Number | Description |
|---|---|---|
| 1 | W520113 | Seat track nuts (4 required) |
| 2 | 63101 | Cushion frame |
| 3 | 14N089 | Heated seat relay, driver |
| 4 | 14N089 | Heated seat relay, passenger |
| 5 | 14A699 | Seat wire harness |
| 6 | 62901 | Cushion cover |
| 7 | 14D698 | Cushion heater mat (if equipped) |
| 8 | 14B416 | Seat position sensor |
| 9 | 632A23 | Cushion foam pad |
| 10 | 61711 | Seat track |
| 11 | W505256 | Seat position sensor bolt |
| 12 | 61203 | Safety belt buckle |
| 13 | - | Safety belt buckle bolt (part of 61203) |
