Cushion Side Shield - Manual
WARNING: This page is about a different car, the 2013 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

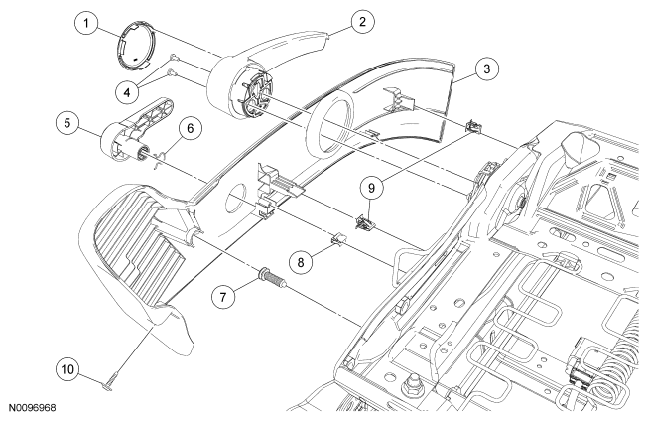

LH shown in illustration, RH similar.
| Item | Part Number | Description |
|---|---|---|
| 1 | 62768 | Manual height adjust handle cover |
| 2 | 61753 | Manual height adjust handle |
| 3 | 62187 | Side shield |
| 4 | W711217 | Manual height adjust handle screws (2 required) |
| 5 | 62622 | Recline handle |
| 6 | - | Recline handle retainer (part of 62622) |
| 7 | - | Side shield pin-type retainer (part of 62187) |
| 8 | - | Side shield retainer, Z-clip (part of 62187) |
| 9 | - | Side shield retainers (2 required) (part of 62187) |
| 10 | W711216 | Side shield screw |
