Boss® 302 Exhaust H-Pipe
WARNING: This page is about a different car, the 2013 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.

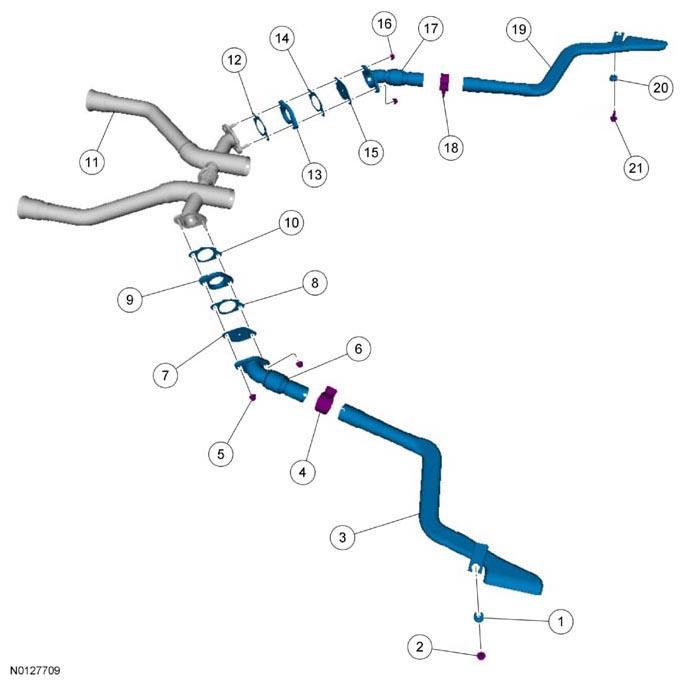

| Item | Part Number | Description |
|---|---|---|
| 1 | 17C431 | LH exhaust side pipe grommet assembly |
| 2 | W714780 | LH exhaust side pipe bolt - 25 Nm (18 lb-ft) |
| 3 | 5255 | LH exhaust side pipe |
| 4 | - | LH exhaust side pipe Torca® clamp (part of 5255) - 48 Nm (35 lb-ft) |
| 5 | W705443 | LH exhaust side pipe-to-exhaust H-pipe nut (2 required) - 40 Nm (30 lb-ft) |
| 6 | 5255 | LH exhaust side pipe flange (part of 5255) |
| 7 | 5C226 | Restrictor |
| 8 | 5B266 | Gasket |
| 9 | 5H294 | Spacer |
| 10 | 5B266 | Gasket |
| 11 | 5246 | Exhaust H-Pipe |
| 13 | 5H294 | Spacer |
| 14 | 5B266 | Gasket |
| 15 | 5C226 | Restrictor |
| 16 | W705443 | RH exhaust side pipe-to-exhaust H-pipe nut (2 required) - 40 Nm (30 lb-ft) |
| 17 | 5255 | RH exhaust side pipe flange (part of 5255) |
| 18 | - | RH exhaust side pipe Torca® clamp (part of 5255) - 48 Nm (35 lb-ft) 19 5255 RH exhaust side pipe |
| 20 | 17C431 | RH exhaust side pipe grommet assembly |
| 21 | W714780 | RH exhaust side pipe bolt - 25 Nm (18 lb-ft) |
