Camshaft Runout
WARNING: This page is about a different car, the 2013 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.
SPECIAL TOOLS
| Dial Indicator Gauge with Holding Fixture 100-002 (TOOL-4201-C) or equivalent |
NOTE:
Refer to the appropriate Engine article
for the specification.
-
NOTE: Camshaft journals must be within specifications before checking runout.

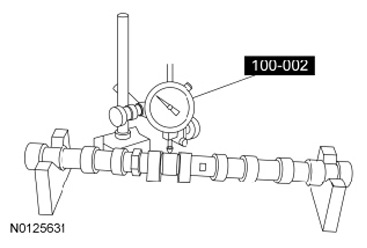

Using the Dial Indicator Gauge with Holding Fixture, measure the camshaft runout.
- Camshaft must be supported on the first and last camshaft bearing journal.
- Rotate the camshaft and subtract the lowest Dial Indicator Gauge reading from the highest Dial Indicator Gauge reading.
