Output Shaft Speed (OSS) Sensor: Notes

WARNING: This page is about a different car, the 2013 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.

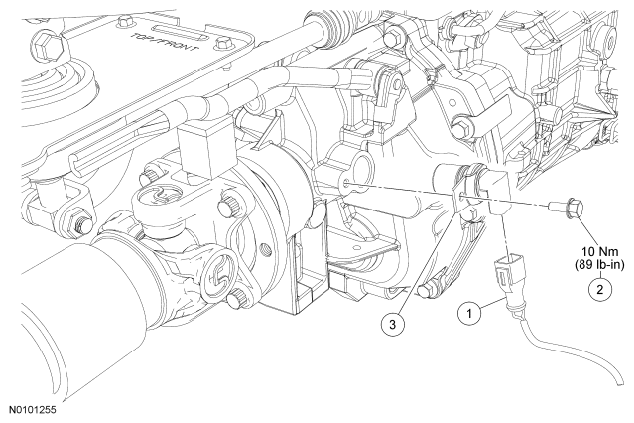

Fig 1: Output Shaft Speed (OSS) Sensor Replacement Components With Torque Specifications
G06384306Courtesy of FORD MOTOR CO.
Item Part Number Description
1 - Output Shaft Speed (OSS) sensor electrical connector
2 - OSS sensor bolt
3 - OSS sensor
