Transmission Draining and Filling
WARNING: This page is about a different car, the 2013 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.
MATERIAL SPECIFICATIONS
| Item | Specification |
|---|---|
| MERCON® V Automatic Transmission Fluid XT-5-QM (or XT-5-QMC) (US); CXT-5-LM12 (Canada) |
MERCON® V |
| Threadlock and Sealer TA-25 |
WSK-M2G351-A5 |

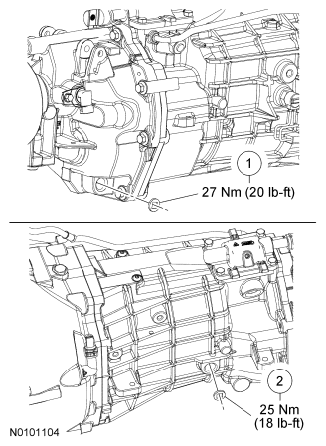

Fig 1: Locating Manual Transmission Drain Plug And Manual Transmission Fill Plug With Torque Specifications
| Item | Part Number | Description |
|---|---|---|
| 1 | 7A010 | Drain plug |
| 2 | 7A010 | Fill plug |
NOTE:
When filling the transmission, start the engine and shift the transmission through all gears to eliminate any trapped air in the transmission fluid cooling system.
- With the vehicle in NEUTRAL, position it on a hoist. Refer to JACKING & LIFTING .
- Remove the drain plug and drain the transmission.
- Clean the drain plug. Apply threadlock and sealer to the plug threads and install the drain plug.
- Tighten to 27 Nm (20 lb-ft).
-

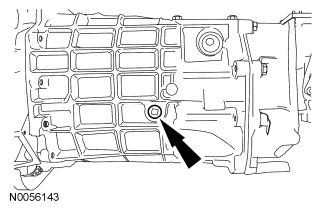

NOTE: Before removing the fill plug, clean the area around the fill plug.
Remove the fill plug.
- Using a oil suction gun, fill the transmission with the specified fluid until it is even with the oil fill plug hole.
- Install the fill plug. Start the engine and shift the transmission through all the gears to eliminate any trapped air in the transmission fluid cooling system.
- Remove the fill plug.
- Using a oil suction gun, fill the transmission with the specified fluid until it is even with the oil fill plug hole.
- Transmission capacity is 3.96L (4.18 qt).
- Apply threadlock and sealer to the plug threads and install the fill plug.
- Tighten to 25 Nm (18 lb-ft).
