Transmission Case: Assembly

WARNING: This page is about a different car, the 2013 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: If a new countershaft bearing is being installed, install a new bearing cup. Always install new bearings and cups in a set.

Using the Bearing Cup Installer with Handle, install the countershaft bearing cup.

Fig 1: Countershaft Bearing Cup Installer And Handle
Courtesy of FORD MOTOR CO.
NOTE: If a new mainshaft bearing is being installed, install a new bearing cup. Always install new bearings and cups in a set.

Using the Rear Axle Oil Seal Installer with Handle, install the output shaft bearing cup.

Fig 2: Installing Output Shaft Bearing Cup Using Rear Axle Oil Seal Installer And Handle
Courtesy of FORD MOTOR CO.

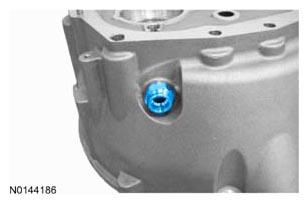

Apply thread sealant to the threads and install the cooler line fitting.
- Tighten to 22 Nm (16 lb-ft).

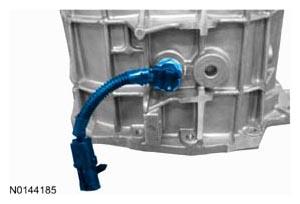

Apply thread sealant to the threads and install the reverse lamp switch.
- Tighten to 27 Nm (20 lb-ft).
Install the shift guide plate and the 2 shift guide plate bolts.
- Tighten to 22 Nm (16 lb-ft).

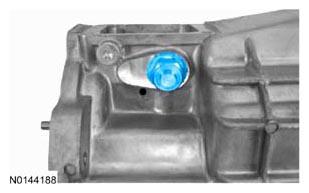

Apply thread sealant to the threads and install the shift detent into the transmission main case.
- Tighten to 40 Nm (30 lb-ft).

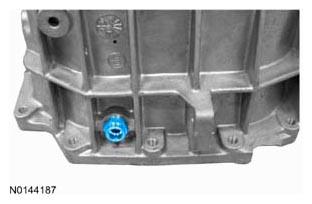

Apply thread sealant to the threads and install the cooler line fitting.
- Tighten to 22 Nm (16 lb-ft).

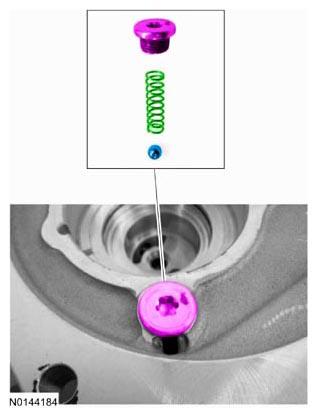

Install the oil pump check ball and spring.
- Tighten to 18 Nm (13 lb-ft).
NOTE: Lubricate the oil pump gear with clean transmission fluid.

Install the oil pump gear.
NOTE: Lubricate the oil pump drive gear with clean transmission fluid.

Install the oil pump drive gear.
Install the snap ring into the clutch housing.
