Output Shaft: Disassembly

WARNING: This page is about a different car, the 2013 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.

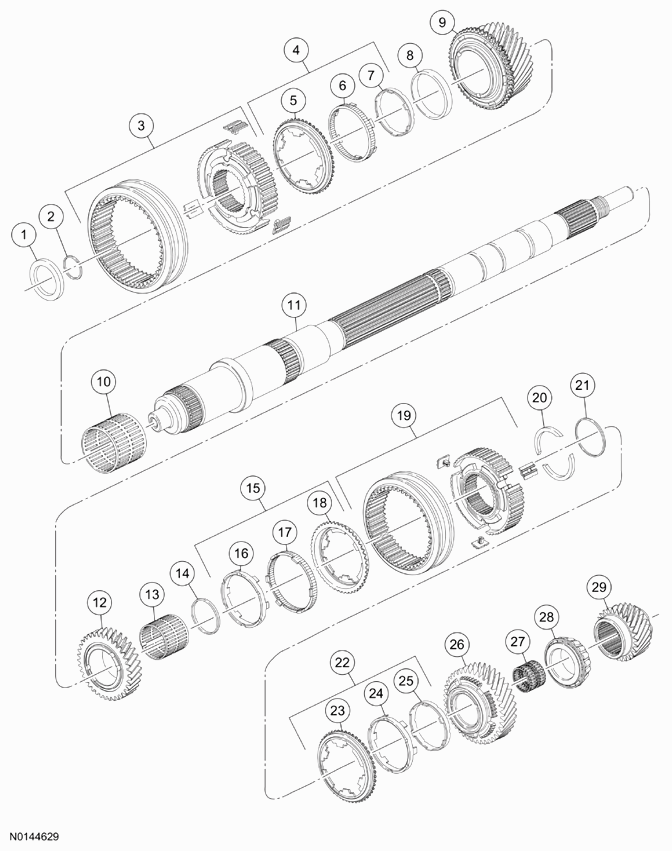

Fig 1: Exploded View Of Output Shaft
G08645362Courtesy of FORD MOTOR CO.
Item Part Number Description
1 7025 Axial thrust washer
2 7A082 Snap ring
3 7124 3rd/4th gear synchronizer assembly
4 7107 3rd gear synchronizer ring assembly
5 - Synchronizer ring (part of 7107)
6 - Synchronizer outer cone (part of 7107)
7 - Synchronizer inner cone (part of 7107)
8 7117 Spacer
9 7B340 3rd gear
10 7M037 3rd gear needle bearing
11 7061 Output shaft
12 7102 2nd gear
13 7M037 2nd gear needle bearing
14 7117 Spacer
15 7107B 2nd gear synchronizer ring assembly
16 - Synchronizer inner cone (part of 7107)
17 - Synchronizer outer cone (part of 7107)
18 - Synchronizer ring (part of 7107)
19 7124A 1st/2nd gear synchronizer assembly
20 7A082A Split ring
21 7A082A Retainer
22 7107A 1st gear synchronizer ring assembly
23 - Synchronizer ring (part of 7107)
24 - Synchronizer outer cone (part of 7107)
25 - Synchronizer inner cone (part of 7107)
26 7100 1st gear
27 7025 1st gear needle bearing
28 7025 Output shaft rear bearing
29 7L047 6th driven gear
  1. NOTE: Slide the synchronizer sleeve up while removing the pressure pieces.

    Remove the 3rd/4th gear synchronizer sleeve, the 3 pressure pieces and the axial thrust washer.

    G08645363
  2. NOTE: Hand-tighten the Bearing Puller to prevent gear damage.
    NOTE: Support the output shaft while using the press to prevent damage to the shaft or gears.

    Using the Bearing Puller and a press, remove the 1st gear, the output shaft rear bearing and the 6th driven gear.

    • Discard the output shaft bearing.
    • Inspect the gears for wear or damage. Install new gears as necessary.
      Fig 2: 1st Gear, Output Shaft Rear Bearing And 6th Driven Gear
      G06384372Courtesy of FORD MOTOR CO.
  3. Remove the 1st gear needle bearing.
    • Inspect the needle bearing for wear or damage. Install a new needle bearing as necessary.
      G08645365
  4. NOTE: Note the position of each synchronizer ring component before removal.

    Remove the 1st gear synchronizer ring assembly.

    • Inspect the 1st gear synchronizer ring assembly for wear or damage. Install a new synchronizer ring assembly as necessary.
      Fig 3: Locating 1st Gear Synchronizer Ring Assembly
      G06384373Courtesy of FORD MOTOR CO.
  5. NOTE: Slide the synchronizer sleeve up while removing the pressure pieces.

    Remove the 1st/2nd gear synchronizer sleeve and the 3 pressure pieces.

    Fig 4: Locating 1st/2nd Gear Synchronizer Sleeve And Pressure Pieces
    G06384374Courtesy of FORD MOTOR CO.
  6. Remove the split ring and retainer.
    Fig 5: Locating Split Ring And Retainer
    G06384375Courtesy of FORD MOTOR CO.
  7. Remove the 1st/2nd gear synchronizer hub.
    G08645369
  8. NOTE: Note the position of each synchronizer ring component before removal.

    Remove the 2nd gear synchronizer ring assembly.

    • Inspect the 2nd gear synchronizer ring assembly for wear or damage. Install a new synchronizer ring assembly as necessary.
      G06384376
  9. Remove the 2nd gear.
    • Inspect 2nd gear for wear or damage. Install a new gear as necessary.
      Fig 6: Locating 2nd Gear
      G06384377Courtesy of FORD MOTOR CO.
  10. Remove the 2nd gear needle bearing and the spacer.
    • Inspect the needle bearing for wear or damage. Install a new needle bearing as necessary.
      Fig 7: Locating 2nd Gear Needle Bearing And Spacer
      G06384378Courtesy of FORD MOTOR CO.
  11. Remove and discard the snap ring.
    G08645373
  12. NOTE: Hand-tighten the Bearing Puller to prevent gear damage.
    NOTE: Support the output shaft while using the press to prevent damage to the shaft or gears.
    NOTE: Note the position of each synchronizer ring component before removal.

    Using the Bearing Puller, remove the 3rd/4th gear synchronizer hub, the 3rd gear synchronizer ring assembly and the 3rd gear.

    • Inspect the gear for wear or damage. Install a new gear as necessary.
      Fig 8: 3rd/4th Gear Synchronizer Hub, 3rd Gear Synchronizer Ring Assembly And 3rd Gear
      G08645374Courtesy of FORD MOTOR CO.
  13. Remove the 3rd gear needle bearing and the spacer.
    • Inspect the needle bearing for wear or damage. Install a new needle bearing as necessary.
      Fig 9: Locating 3rd Gear Needle Bearing
      G08645375Courtesy of FORD MOTOR CO.
  14. Inspect the synchronizer assemblies for the following:
    • Check for worn, nicked or broken teeth. Install a new synchronizer assembly as necessary.
    • Check pressure pieces for wear or distortion. Check the pressure piece springs for distortion. Install a new synchronizer assembly as necessary.
  15. Inspect the output shaft for scoring or worn or damaged splines. Install a new output shaft as necessary.
