Transmission Draining and Filling

WARNING: This page is about a different car, the 2013 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.

MATERIAL SPECIFICATIONS

Item	Specification
Motorcraft® Dual Clutch Transmission Fluid XT-11-QDC	WSS-M2C200-D2

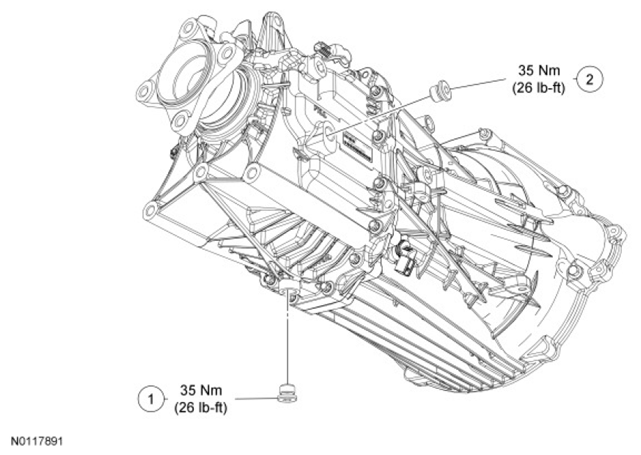

Fig 1: Manual Transmission Drain Plug And Manual Transmission Fill Plug With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W701065	Drain plug
2	W701065	Fill plug

With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING & LIFTING .
Remove the drain plug and drain the fluid.

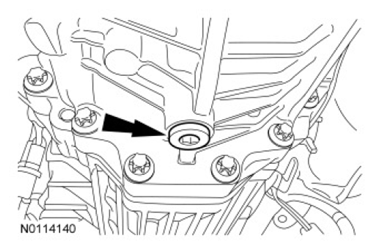

Fig 2: Locating Drain Plug
Courtesy of FORD MOTOR CO.
Install the drain plug.
- Tighten to 35 Nm (26 lb-ft).
NOTE: Prior to removal, clean the area around the fill plug.

Remove the fill plug.

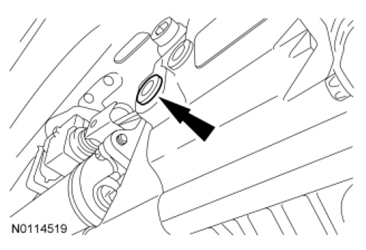

Fig 3: Locating Fill Plug
Courtesy of FORD MOTOR CO.
NOTE: The use of any other transmission fluid than specified can result in the transmission failing to operate in a normal manner or transmission failure.

NOTE: Do not overfill the transmission. This will cause transmission fluid to be forced out of the case.

Using a suitable oil suction gun, fill the transmission with the recommended fluid.
- Transmission capacity is 2.6L (2.7 qt).
Install the fill plug.
- Tighten to 35 Nm (26 lb-ft).
