Disassembled Views

WARNING: This page is about a different car, the 2013 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.

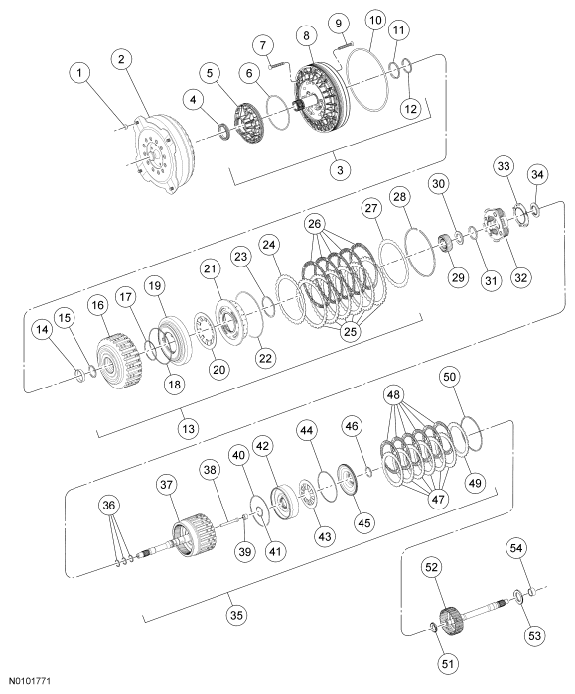

Fig 1: Exploded View Of Transmission Components (1 Of 3)
G06127600Courtesy of FORD MOTOR CO.

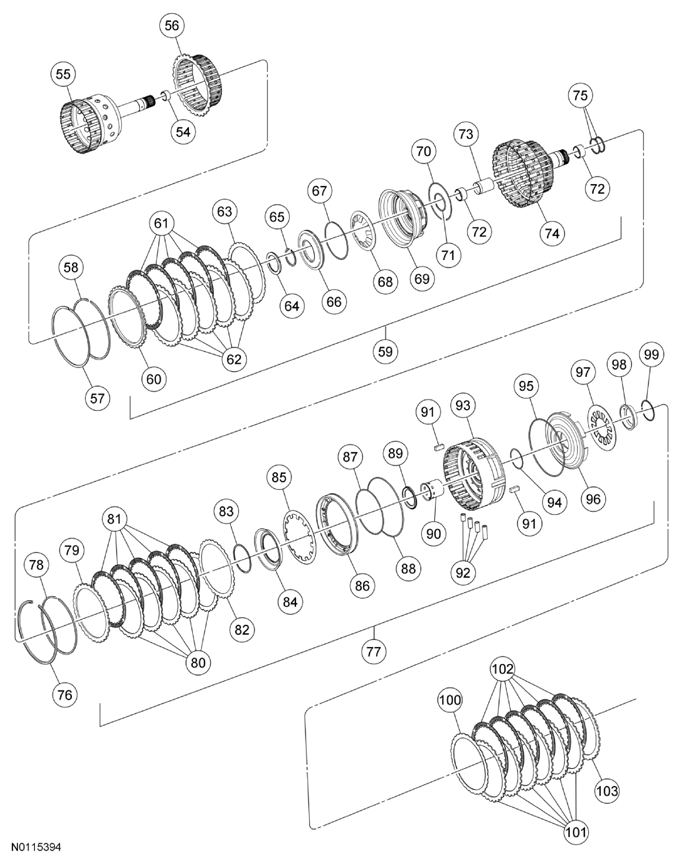

Fig 2: Exploded View Of Transmission Components (2 Of 3)
G07962911Courtesy of FORD MOTOR CO.

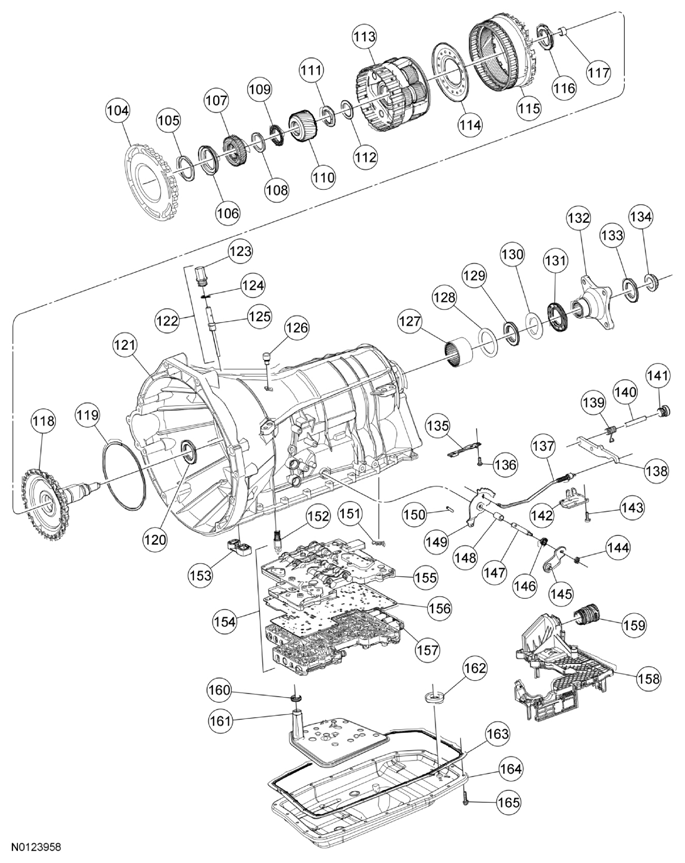

Fig 3: Exploded View Of Transmission Components (3 Of 3)
G07990363Courtesy of FORD MOTOR CO.
Item Part Number Description
1 N800750-S437 Flexplate-to-torque converter nut (4 required)
2 7902 Torque converter
3 7A103 Pump assembly
4 7A248 Front pump oil seal
5 - Pump body (part of 7A103)
6 7A248 Front pump inner oil seal
7 7N134 Front pump-to-case bolt (13 required)
8 7A103 Front pump assembly
9 W707871-S300 Bolt - attaches pump to pump adapter assembly (11 required)
10 7A248 Front pump outer oil seal
11 7D019 Clutch support fluid seal
12 7L323 Front pump support seal
13 - Forward (A) clutch assembly
14 - Forward (A) clutch rear bushing (part of 7A360)
15 7D014 Front pump selective washer
16 7A360 Forward (A) clutch cylinder and hub assembly
17 7A548 Forward (A) clutch inner piston seal
18 7A548 Forward (A) clutch outer piston seal
19 7A262 Forward (A) clutch piston
20 7A480 Forward (A) clutch piston retaining spring
21 7H360 Forward (A) clutch balance piston assembly
22 7A548 Forward (A) clutch balance piston outer seal
23 7H365 Forward (A) clutch balance piston snap ring
24 7E085 Forward (A) clutch cushion spring
25 7E314 Forward (A) clutch steel plates (externally splined) (quantity model dependent)
26 7B164 Forward (A) clutch friction plates (internally splined) (quantity model dependent)
27 7B066 Forward (A) clutch pressure plate
28 7D483 Pressure plate retaining snap ring
29 7D063 Front planetary sun gear (No. 1)
30 7H375 Bearing (T1)
31 - Front planetary carrier assembly snap ring (part of 7A398)
32 7A398 Front planetary carrier assembly
33 7L339 Plate transmission fluid collector
34 7L495 Bearing (T2)
35 - Overdrive (E) clutch assembly
36 7G091 Turbine shaft seals (3 required)
37 7F207 Input shaft
38 - Fluid distributor sleeve (part of 7J006)
39 - Output shaft bushing (part of 7J006)
40 7A548 Overdrive (E) clutch piston outer seal
41 7A548 Overdrive (E) clutch piston inner seal
42 7A262 Overdrive (E) clutch piston
43 7B070 Overdrive clutch piston spring
44 7A548 Balance piston outer seal
45 7H360 Overdrive (E) balance piston
46 7C122 Balance piston snap ring
47 7B442 Overdrive (E) clutch steel plates (externally splined)
48 7B164 Overdrive (E) clutch friction plates (internally splined)
49 7B066 Overdrive (E) pressure plate
50 7D483 Overdrive (E) clutch retaining ring
51 7C096 Bearing (T3)
52 7F351 Intermediate (C) clutch shaft
53 7H375 Bearing (T4)
54 - Sun gear bushings (part of 7R193) (2 required)
55 7B067 Sun gear hub and shaft assembly
56 7F236 Direct (B) clutch hub
57 7C122 Direct (B) clutch cylinder retaining ring
58 7D483 Direct (B) clutch pressure plate retaining ring
59 - Direct (B) clutch assembly (clutch B)
60 7B066 Direct (B) clutch pressure plate
61 7B164 Direct (B) clutch friction plates (internally splined) (quantity model dependent)
62 7B442 Direct (B) clutch steel plates (externally splined) (quantity model dependent)
63 7E085 Direct (B) clutch cushion plate
64 7C096 Roller bearing (T5)
65 7A577 Direct (B) clutch piston retaining ring
66 7A262 Direct (B) clutch balance piston
67 7A548 Direct (B) clutch balance seal
68 7B488 Direct (B) clutch piston return spring
69 - Direct (B) clutch piston
70 7A548 Direct (B) clutch piston outer seal
71 7C099 Direct (B) clutch piston inner seal
72 - Direct (B) clutch hub bushings (part of 7F283) (2 required)
73 - Gear shaft tube sleeve (part of 7F283)
74 7F283 Direct (B) clutch cylinder
75 7D020 Shell cylinder seals (2 required)
76 7D483 Center support retaining ring
77 - Intermediate (C) clutch assembly
78 7D483 Intermediate (C) clutch pressure plate retaining ring
79 7B066 Intermediate (C) clutch pressure plate
80 7B442 Intermediate (C) clutch steel plates (externally splined) (quantity model dependent)
81 7B164 Intermediate (C) clutch friction plates (internally splined) (quantity model dependent)
82 7E085 Intermediate (C) clutch pressure plate spring
83 7A577 Intermediate (C) clutch retaining ring
84 7B043 Intermediate (C) clutch ring
85 7A480 Intermediate (C) clutch piston spring
86 7E005 Intermediate (C) clutch piston
87 7F225 Intermediate (C) clutch piston inner seal
88 7F224 Intermediate (C) clutch piston outer seal
89 7F373 Bearing (T6)
90 - Center shaft sleeve (part of support assembly)
91 7B220 Center support keys (2 required)
92 7G199 Center support seals (4 required)
93 7G033 Center support assembly
94 7D404 Low/reverse clutch piston center seal
95 7D403 Low/reverse clutch piston outer seal
96 7A262 Low/reverse clutch piston
97 7B070 Low/reverse clutch piston return spring
98 7H318 Low/reverse clutch piston retainer
99 7D483 Retainer transmission-snap ring
100 7E085 Clutch disc cushion plate
101 7B442 Low/reverse clutch steel plates (externally splined)
102 7B164 Low/reverse clutch friction plates (internally splined)
103 7B066 Low/reverse clutch pressure plate (select fit)
104 7A089 One-Way Clutch (OWC)
105 7F405 Thrust gear shim (select fit)
106 7C041 Thrust bearing (T7)
107 7D063 Sun gear No. 2
108 7D235 Thrust bearing outer race
109 7D234 Roller bearing (T8)
110 7D063 Sun gear No. 3
111 7D234 Roller bearing (T9)
112 - Roller bearing race (T9)
113 7D006 Rear planetary carrier assembly
114 - Fluid collar rear planetary plate (part of 7D006)
115 7A153 Output shaft ring gear assembly
116 7G178 Thrust Bearing (T10)
117 - Output shaft bushing (part of 7060)
118 7060 Output shaft park gear assembly
119 7N194 Output shaft retaining ring
120 7B368 Bearing (T11)
121 7005 Transmission case assembly (model dependent)
122 7A010 Transmission case fluid fill plug assembly
123 7H398 Transmission case fluid fill plug
124 7A010 Transmission case fluid fill seal
125 7A010 Transmission oil level indicator
126 7034 Transmission case vent assembly (model dependent)
127 7A415 Output shaft bearing assembly
128 7A433 Washer
129 7B368 Thrust bearing (T12)
130 7N357 Slip plane washer
131 7052 Extension housing seal
132 7089 Output shaft flange
133 7052 Extension housing flange seal
134 7045 Output shaft flange retaining nut
135 7E332 Manual valve detent spring
136 W711235-S300 Manual valve detent spring retaining screw and washer
137 7A232 Park pawl actuator rod
138 7A441 Park pawl
139 7D070 Park pawl return spring
140 7D071 Park pawl shaft
141 7H398 Plug assembly transmission case housing
142 7G101 Park rod actuating plate
143 W711235-S300 Park pawl abutment retaining screw and washer
144 W708455-S441 Manual control lever nut
145 7A256 Manual control lever
146 7B498 Manual control lever shaft seal
147 7C493 Manual control lever shaft
148 7A209 Manual control lever shaft spacer
149 7A115 Manual valve detent lever assembly
150 7G100 Manual valve detent lever retaining pin
151 7F277 One-Way Clutch (OWC) bias spring
152 7H322 Thermal bypass valve
153 7F401 Front pump adapter seal
154 7A100 Main control assembly
155 - Main control valve body assembly (part of 7A100)
156 7Z490 Main control valve body separator plate
157 - Lower main control valve body (part of 7A100)
158 7G276 Molded leadframe
159 7G276 Bulkhead connector sleeve
160 - Transmission fluid filter seal (part of 7A098)
161 7A098 Transmission fluid filter
162 - Transmission fluid pan magnet
163 7A191 Transmission fluid pan gasket
164 7A194 Transmission fluid pan
165 W500214-S437 Transmission fluid pan bolt
NOTE: Clutch plate quantity is model dependent based on engine displacement. Refer to Clutch Plate Quantity chart  in the Specifications portion.

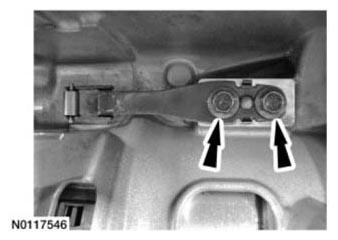

  1. Install the park detent spring and the 2 bolts.
    • Tighten to 12 Nm (106 lb-in).
      G07476134

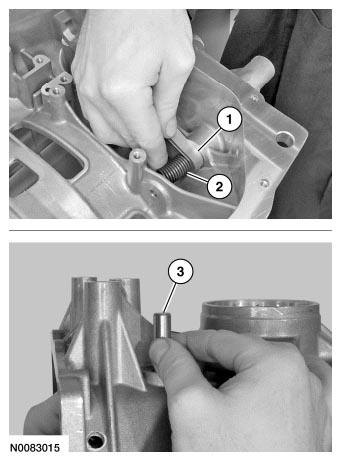

  2. Position the park pawl and spring into the case and install the park pawl pin.
    1. Park pawl
    2. Park pawl return spring
    3. Park pawl pin
      G06398445
  3. Install the park pawl pin bolt.
    • Tighten to 23 Nm (17 lb-ft).
      G06127605
  4. Install a new manual control lever shaft seal on the Shifter Fluid Seal Installer.
    G06127606
  5. Using the Shifter Fluid Seal Installer, install the manual control lever shaft seal.
    G06127607
  6. Assemble the manual control lever detent plate assembly and park pawl actuator rod.
    G06127608
  7. Position the manual valve detent lever and park pawl actuator rod assembly in the transmission case.
    G06127609

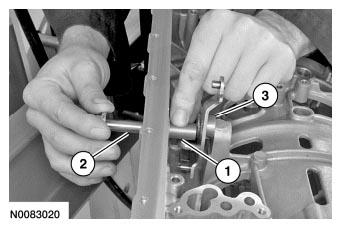

  8. Position the manual control lever spacer in place and slide the manual control lever shaft into the case and the manual control lever detent plate.
    1. Manual control lever spacer
    2. Manual control lever shaft
    3. Manual control lever detent plate
      G06398451
  9. Align the roll pin hole in the manual control lever detent plate with the roll pin hole in the manual control lever shaft and install a new roll pin using a suitable tool.
    G06127611
  10. Install the park rod actuating plate and the 4 bolts.
    • Tighten to 12 Nm (106 lb-in).
      G07476129
  11. Install the bearing on the Rear Bearing 4X2 Installer.
    G06127616

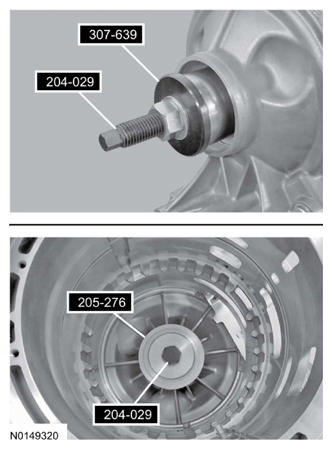

  12. Assemble the Front Wheel Hub Oil Seal Installer and the Rear Bearing 4X2 Installer on the Drawbar and install the bearing in the transmission case.
    G08644662
  13. Position the thrust bearing spacer.
    G06127619

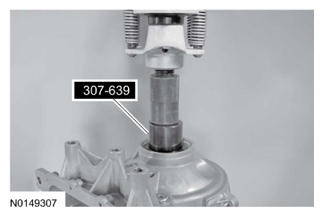

  14. Using the Rear Bearing 4X2 Installer and a press, press the thrust bearing spacer in place.
    G08644664
  15. Install the T12 thrust bearing.
    G06127368
  16. Install the T11 bearing, on the planetary ring gear and output shaft assembly.
    G07962931
  17. Install the rear planetary ring gear and output shaft assembly.
    G06127365
  18. Install the T10 thrust bearing on the output shaft assembly.
    G06127630
  19. Install the T9 roller bearing race into the bottom of the carrier.
    G06127361
  20. Install the top T8 and the bottom T9 roller bearings onto the sun gear.
    G06127360
  21. NOTE: When installing the sun gear, make sure that the TAPERED EDGE is facing UP toward the torque converter housing.

    Install the sun gear into the planetary assembly.

    G06171355
  22. Install the low/reverse sun gear and bearing race into the planetary carrier with the race side facing down.
    G06171356
  23. NOTE: Place the manual lever in PARK when installing the rear planetary gearset to hold the rear ring gear stationary.

    Install the planetary carrier.

    G06127635
  24. NOTE: Friction and steel plate quantity are model dependent and vary based on engine displacement. For additional information, refer to the Clutch Plate Quantity Chart  in the Specifications portion.

    Soak the low/reverse clutch plates in clean automatic transmission fluid.

    G06127636
  25. Install the low/reverse clutch plates, starting with the pressure plate and alternating between the friction and steel plates and ending with the wave spring plate on the top.
    G06127637

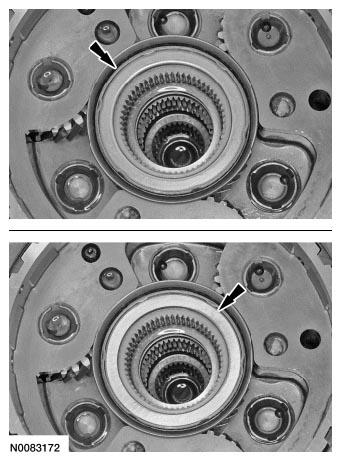

  26. NOTE: Inspect the T7 thrust bearing and selective shim for damage or scoring.

    Install the T7 thrust bearing and install the selective shim on the T7 thrust bearing.

    G06398479

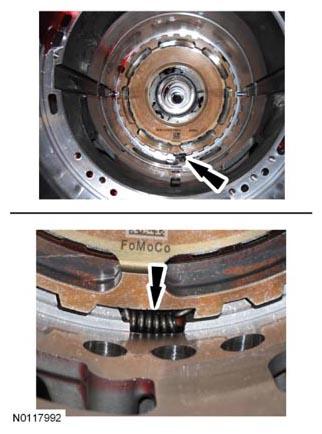

  27. NOTE: Align the One-Way Clutch (OWC) in the transmission case so the bias spring fits into the transmission case.

    Install the OWC as shown so the bias spring can be installed as shown.

    G07962942
  28. Install the bias spring.
    G07475991
  29. NOTE: Make sure that when installing the center support the feed holes on the center support are lined up with the feed holes in the case.

    Install the center support into the case.

    G06127354
  30. NOTE: Install the snap ring with the beveled surface facing up and the snap ring gap in the 3 o'clock or the 9 o'clock position.

    Using the Retaining Ring Pliers, install the center support snap ring. Using a suitable tool, make sure the snap ring is fully seated.

    G06127353
  31. Rotate the transmission to the vertical position and install the slip plane washer.
    G07962949
  32. Position a new output shaft seal on the Rear Seal Installer 4X2.
    G06171348

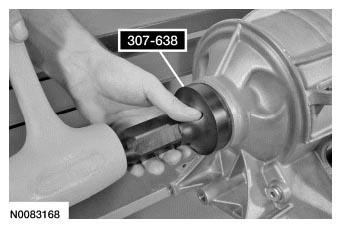

  33. Using the Rear Seal Installer 4X2, install the output shaft seal.
    G06398468

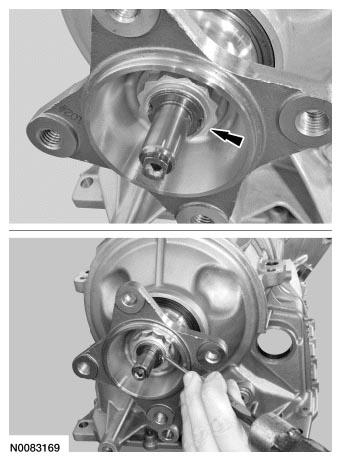

  34. Install the output shaft flange and the extension housing flange seal.
    G06127364
  35. Loosely install a new output shaft flange retaining nut.
    G06171351
  36. Install the Dial Indicator Gauge with Holding Fixture on the transmission case and position the plunger on the output shaft flange.
    G06127641
  37. NOTE: Loosely install the flange nut or an inaccurate reading may be recorded.

    Using the Dial Indicator Gauge with Holding Fixture, lift up on the output shaft flange and record the reading. The reading should be within 0.6-0.9 mm (0.024-0.035 in).

    • If the reading is not within specification, remove the center support and install a different (either thinner or thicker) selective shim on the T7 thrust bearing.
      G06127642
  38. Place the manual control lever in the PARK position and tighten the output shaft flange nut.
    • Tighten to 80 Nm (59 lb-ft).
    • After installing the new output shaft flange nut, stake the slots to prevent it from coming loose.
      G06398484
  39. Rotate the transmission in the vertical position with the torque converter housing facing up and install the T6 bearing.
    G06127646

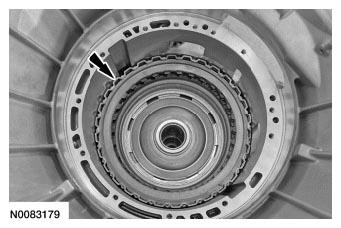

  40. Install the direct (B) clutch assembly.
    G06398488
  41. Install the T5 roller bearing on the direct (B) clutch assembly.
    G06127648
  42. Install the forward (A)/overdrive (E) clutch assembly.
    G06171371
  43. Install the selective shim.
    G06127650
  44. If the front pump was not disassembled and assembled, install a new front pump O-ring seal and lubricate it with petroleum jelly.
    G06127583
  45. Install a new front pump seal on the Fluid Pump Seal Installer.
    G06127584
  46. Using the Fluid Pump Seal Installer, install the front pump seal.
    G06127585
  47. Install the Transmission Fluid Pump Remover on the front pump.
    G06127654

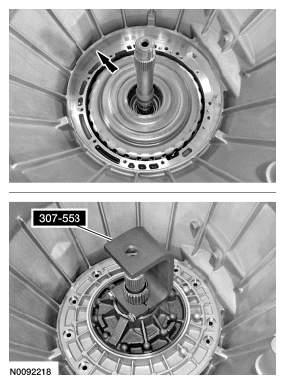

  48. Lubricate the transmission case pump bore with petroleum jelly. Using the Transmission Fluid Pump Remover, position the pump assembly in the case and rotate the pump to insert the pump splines into the front planetary sun gear. Rotate the pump to align the pump-to-case bolts and push the pump into the case.
    G06127655
  49. Install 13 new front pump-to-case bolts and washers. Tighten in a crisscross pattern.
    • Tighten pump fasteners with washers to 10 Nm (89 lb-in).
    • Tighten fasteners without washers to 14 Nm (124 lb-in).
      G06127657
  50. Install the Transmission End Play Gauge on the input shaft to measure the end play.
    • Tighten the wing nut.
      G06171380
  51. Install the Dial Indicator Gauge with Holding Fixture on the Transmission End Play Gauge.
    • Push down on the Transmission End Play Gauge and zero the Dial Indicator Gauge.
    • Lift up on the Transmission End Play Gauge and record the measurement on the Dial Indicator Gauge. The measurement should be between 0.2-0.4 mm (0.008-0.015 in). If the measurement is not within specification, install a new selective front pump shim.
    • Measure the original shim, install a thinner or a thicker shim to achieve the correct measurement.
      G06127659
  52. Rotate the transmission in the horizontal position with the main control area facing up and install 4 new center support feed tubes.

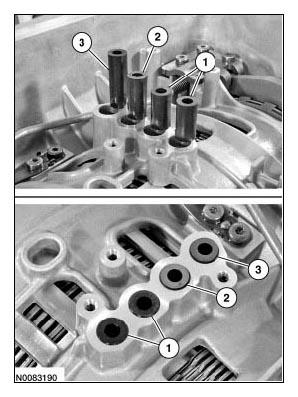

    1. Black feed tubes
    2. Green feed tube
    3. Blue feed tube
      G06171383
  53. NOTE: Make sure the transmission fluid filter seal has been removed. If it has not, use a suitable pick and remove the seal.
    NOTE: Add 0.118L (4 oz.) of clean transmission fluid to prime the pump.

    Install the front pump adapter seal and prime the fluid pump.

    G06398503

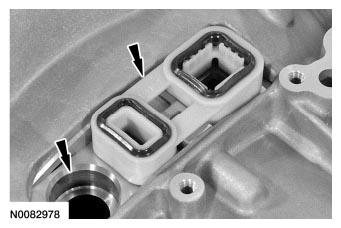

  54. Install the thermal bypass valve into the case.
    G06171064
  55. Align the guide pins in the alignment holes in the transmission case and position the main control assembly in place.

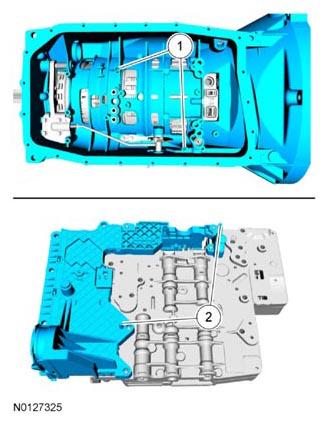

    1. Alignment holes
    2. Guide pins
      G07990418
  56. NOTE: The main control will not lay flush on the case, this is a normal condition with the rubber feed tubes, the bolts will pull the mechatronic assembly down.

    Slightly lift the main control assembly and align the manual valve in the manual valve linkage and position the main control in place.

    G06127665
  57. Install the 11 main control assembly bolts and tighten in the sequence shown below.
    • Tighten to 8 Nm (71 lb-in).
      G06127666
  58. With the release tab up and unlocked, push the outer shell of the bulkhead electrical connector into the transmission. Make sure the bulkhead connector is fully seated into the molded leadframe.
    G06127667
  59. Press down on the tab and lock the outer shell of the bulkhead electrical connector in place. Make sure the locking tab is securely locked.
    G06127668
  60. Install a new transmission fluid filter.
    G06127669
  61. NOTE: The fluid pan gasket can be reused if not damaged.

    Install a new transmission fluid pan gasket if required.

    G06127670
  62. Install the transmission fluid pan and transmission fluid pan bolts. Tighten in a crisscross pattern.
    • Tighten to 11 Nm (97 lb-in).
      G06127333
  63. Using the Torque Converter Handle, install the torque converter.
    G06127672
scientia non olet · About LEMON Manuals
