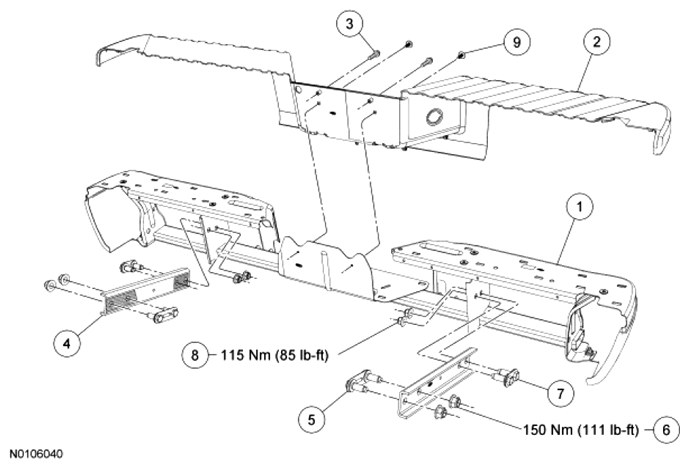

Bumper - Exploded View, Rear
WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Part Number | Description |
|---|---|---|
| 1 | 17775 | Rear bumper |
| 2 | 17B10 | Rear bumper step pad |
| 3 | - | License plate retainer |
| 4 | 17788 | Rear bumper bracket (2 required) |
| 5 | W705175 | Rear bumper bracket-to-frame bolt (2 required) |
| 6 | W520115 | Rear bumper bracket-to-frame nut (4 required) |
| 7 | W705174 | Rear bumper-to-bracket bolt (2 required) |
| 8 | W520115 | Rear bumper-to-bracket nut (4 required) |
| 9 | 17C756 | Rear bumper step pad pin-type retainer (2 required) |
- For additional information, refer to the procedures in this article.
