Removal and Installation

WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

Remove the overhead console. For additional information, refer to INSTRUMENT PANEL AND CONSOLE .
Disconnect the 2 overhead console electrical connectors.
Remove the light assembly from the overhead console.
1. Carefully pull the 2 rear tabs outward and rotate the light assembly slightly away from the overhead console.
2. Carefully pull the 2 front tabs outward and remove the light assembly from the overhead console.

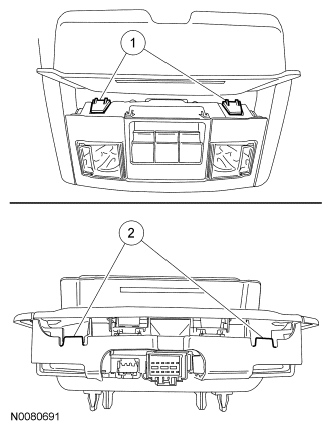

  Fig 1: Identifying Overhead Console Tabs
  Courtesy of FORD MOTOR CO.
Disengage the 4 tabs and remove the switch from the light assembly.

Fig 2: Locating Light Assembly Switch Tabs
Courtesy of FORD MOTOR CO.
Disengage the 2 tabs and remove the switch bezel from the switch.

Fig 3: Locating Switch Bezel Switch Tabs
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
