Component Location
WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

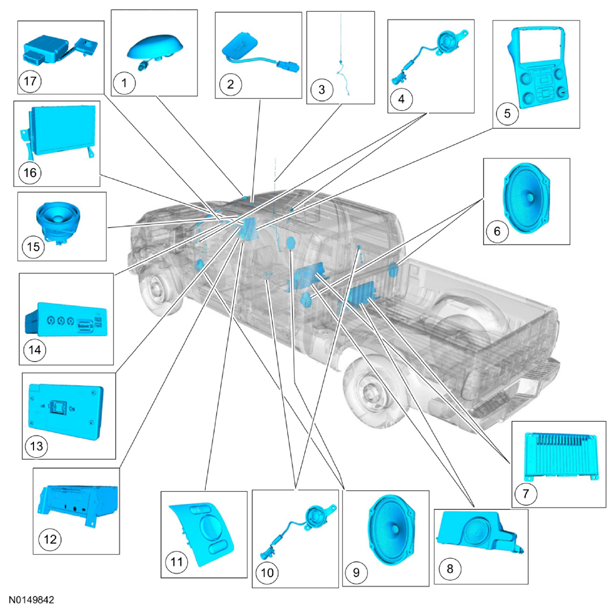

| Item | Description | Comments |
|---|---|---|
| 1 | Satellite radio antenna | - |
| 2 | SYNC® microphone | Located in the headliner |
| 3 | AM/FM/HD Radio® antenna and AM/FM/HD Radio® coaxial cable | - |
| 4 | Front door tweeter speakers | - |
| 5 | FCIM | - |
| 6 | Rear quarter panel speakers | - |
| 7 | Audio DSP module | Located behind the RR seat and attached to the subwoofer enclosure |
| 8 | Subwoofer enclosure | Located behind the RR seat |
| 9 | Front door speakers | - |
| 10 | Rear door tweeter speakers | - |
| 11 | RH steering wheel switches | - |
| 12 | ACM | - |
| 13 | APIM | Attached to the FDIM |
| 14 | Media hub | Located in the top center area of the instrument panel |
| 15 | Instrument panel speaker | - |
| 16 | FDIM | Attached to the APIM |
| 17 | GPSM | Located in the top center area of the instrument panel |
