Component Location
WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

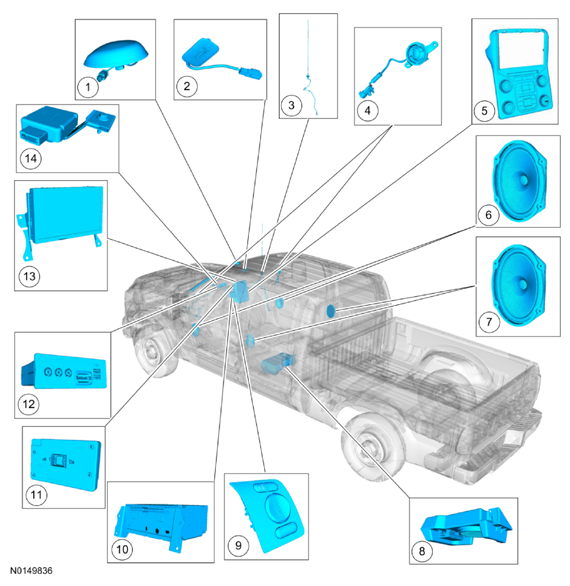

| Item | Description | Comments |
|---|---|---|
| 1 | Satellite radio antenna | - |
| 2 | SYNC® microphone | Located in the headliner |
| 3 | AM/FM/HD Radio® antenna and AM/FM/HD Radio® coaxial cable | - |
| 4 | Front door tweeter speakers | - |
| 5 | FCIM | - |
| 6 | Front door speakers | - |
| 7 | Rear door speakers | - |
| 8 | Subwoofer amplifier, speaker, and enclosure assembly | Located under the LR seat |
| 9 | RH steering wheel switches | - |
| 10 | ACM | - |
| 11 | APIM | Attached to the FDIM |
| 12 | Media hub | Located in the top center area of the instrument panel |
| 13 | FDIM | Attached to the APIM |
| 14 | GPSM | Located behind the IPC |
