Transmission Fluid Cooler-Water-to-Oil, Diesel
WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

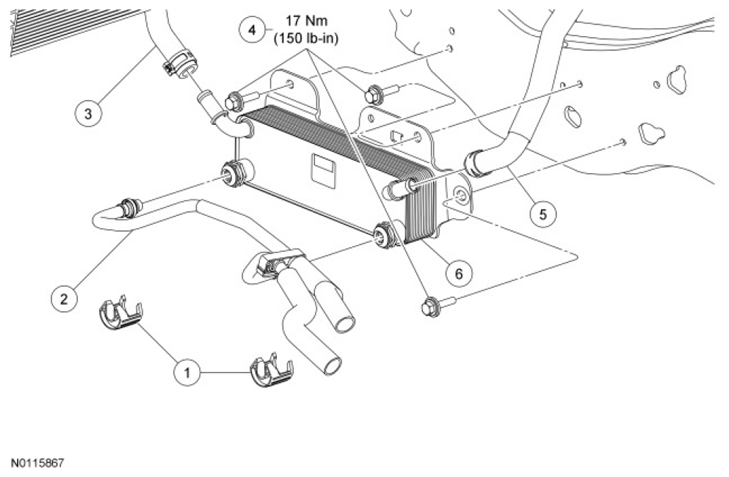

| Item | Part Number | Description |
|---|---|---|
| 1 | 7Z465 | Transmission fluid cooler tube secondary latches |
| 2 | 7R081 | Transmission fluid cooler tube assembly |
| 3 | 7H255 | Transmission fluid cooler inlet hose |
| 4 | W709633 | Transmission fluid cooler bolts |
| 5 | 7H256 | Transmission fluid cooler outlet hose |
| 6 | 7A095 | Transmission fluid cooler-water-to-oil |
