Transmission Fluid Cooler Tubes - 6.7L Diesel: Removal

WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
  1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING & LIFTING .
  2. Remove and discard oil filter.
  3. Disconnect the Engine Oil Temperature (EOT) sensor and Engine Oil Pressure (EOP) switch electrical connectors.
    Fig 1: Locating Engine Oil Temperature Sensor And Engine Oil Pressure Switch Electrical Connectors
    G07483478Courtesy of FORD MOTOR CO.
  4. Remove the nut from the oil filter adapter and position the engine wire harness aside.
    Fig 2: Locating Oil Filter Adapter Nut
    G08602177Courtesy of FORD MOTOR CO.
  5. Remove 4 bolts, 1 stud and the oil filter adapter.
    • Remove and discard the gasket.
      • Clean and inspect the sealing surfaces.
        Fig 3: Locating Oil Filter Adapter, Stud And Bolts
        G07483480Courtesy of FORD MOTOR CO.
  6. Remove the nut and position the transmission cooler tubes aside.
    Fig 4: Locating Transmission Cooler Tube Bracket Nut
    G07483481Courtesy of FORD MOTOR CO.
  7. Remove the nut and position the side engine wire harness aside.

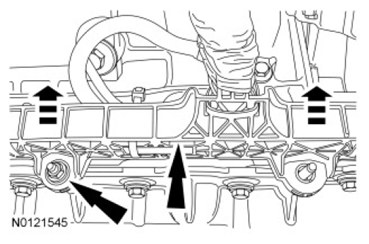

    Fig 5: Removing Engine Wire Harness Nuts
    G07483482Courtesy of FORD MOTOR CO.
  8. Remove the transmission fluid cooler tube secondary latches.
    Fig 6: Locating Transmission Fluid Cooler Tube Secondary Latches
    G07483436Courtesy of FORD MOTOR CO.
  9. NOTE: Transmission fluid cooler tube outlet shown in illustration, inlet tube similar.

    Using the Transmission Cooler Line Disconnect Tool, disconnect the transmission fluid cooler tube assembly.

    Fig 7: Disconnecting Transmission Fluid Cooler Tube Assembly Using Tool
    G08602135Courtesy of FORD MOTOR CO.
  10. NOTE: Transmission fluid cooler tube assembly is removed from the rear of the vehicle.

    Remove the bolt from the transmission case and remove the transmission fluid cooler tubes from the vehicle.

    Fig 8: Locating Transmission Case Mounting Bolt
    G07482974Courtesy of FORD MOTOR CO.
