Automatic Transmission Fluid Cooling System - Diesel Engine, TorqShift®6 Equipped Vehicles
WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

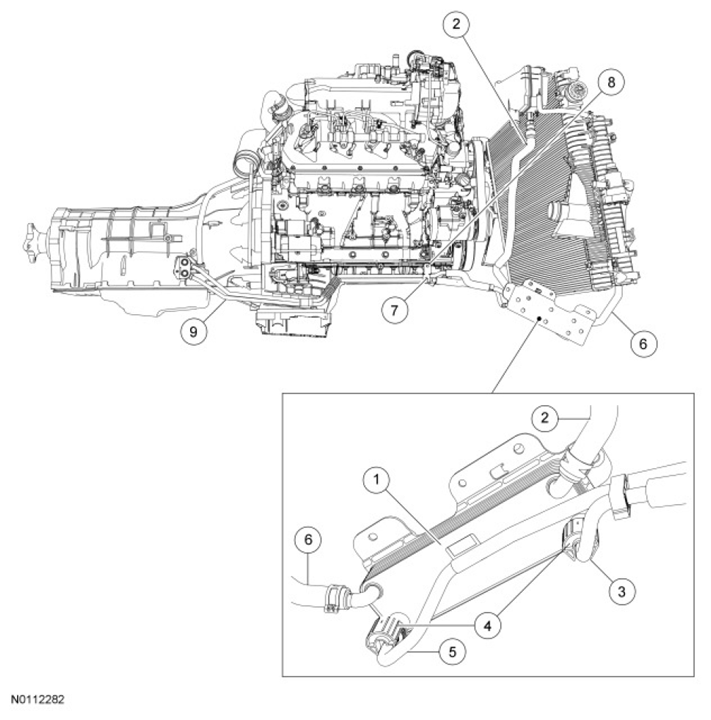

Fig 1: Identifying Automatic Transmission Fluid Cooling System Components (Diesel Engine, TorqShift®6 Equipped Vehicles)
| Item | Part Number | Description |
|---|---|---|
| 1 | 7H189 | Transmission fluid cooler assembly |
| 2 | 7H256 | Secondary coolant hose outlet |
| 3 | 7H420 | Transmission fluid cooler tube inlet |
| 4 | 7J081 | Transmission fluid cooler tube secondary latches |
| 5 | 7H420 | Transmission fluid cooler tube outlet |
| 6 | 7H255 | Secondary coolant hose inlet |
| 7 | - | Transmission fluid cooler tube bracket (part of 7H420) |
| 8 | - | Transmission fluid cooler tube bracket nut |
| 9 | 7H420 | Transmission fluid cooler tube assembly |
