Pinpoint Test AK: Turbocharger Actuator And Turbocharger WASTEGATE Regulating Valve Solenoid: Introduction

WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Regeneration may occur during normal operation. During regeneration, diagnostic procedures may display biased values. If a regeneration occurs during diagnostic procedures, allow the process to complete before continuing diagnostics.

This pinpoint test is intended to diagnose the following:

harness circuits: VPWR, TCWRVS and VGTC
turbocharger actuator (9J559)
turbocharger wastegate regulating valve solenoid
powertrain control module (PCM) (12A650)

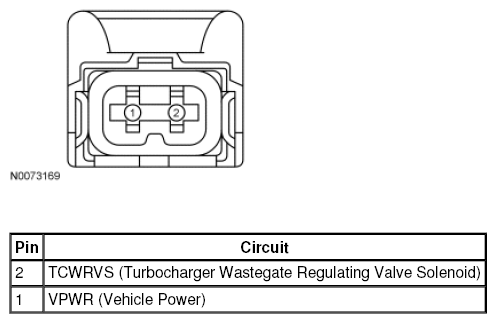

Fig 1: Identifying Turbocharger Wastegate Regulating Valve Solenoid Connector
Courtesy of FORD MOTOR CO.

Fig 2: Identifying Turbocharger Actuator Connector
Courtesy of FORD MOTOR CO.

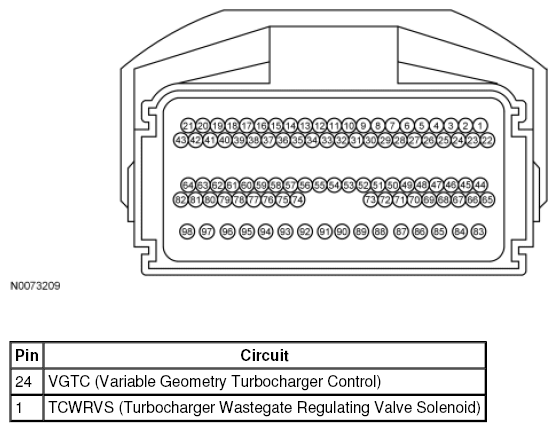

Fig 3: Identifying Powertrain Control Module-E (PCM-E) Connector

Courtesy of FORD MOTOR CO.
