PINPOINT TEST KA: Fuel Pump (FP) Relay: Introduction

This pinpoint test is intended to diagnose the following:

• FP relay (9345)
• inertia fuel shutoff (IFS) switch (9341)
• harness circuits: B+, VPWR, FP, GND, FPM, and FPPWR
• powertrain control module (PCM) (12A650)

Fuel Pump (FP) Relay Connector

The VPWR and FP circuits may be reversed in the harness connector. Refer to the appropriate System Wiring Diagrams article for schematic and connector information.

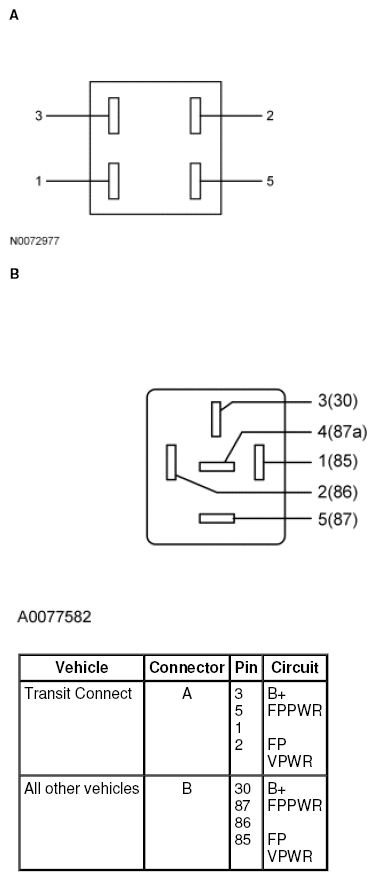

Fig 1: Identifying Fuel Pump (FP) Relay Connector

Courtesy of FORD MOTOR CO.

Fig 2: Identifying Inertia Fuel Shutoff (IFS) Switch Connector

Courtesy of FORD MOTOR CO.

Powertrain Control Module (PCM) Connector

For PCM connector views or reference values, refer to REFERENCE VALUES article.
