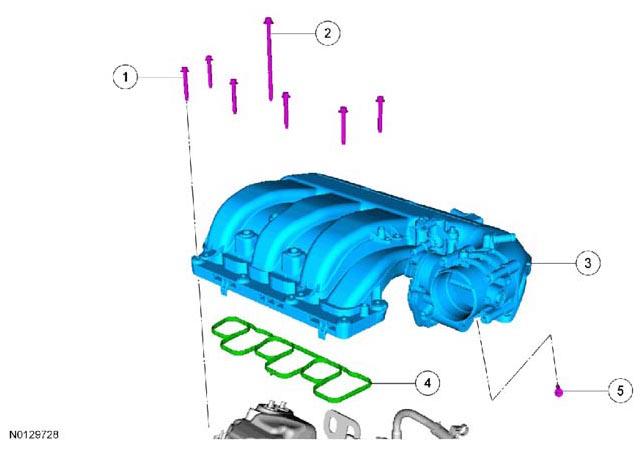

Exploded View
| Item | Service Part Number | Description | Torque | Material Name | Notes |
|---|---|---|---|---|---|
| 1 | 9Y450 | Upper intake manifold bolt (6 required) | REFER to Installation | - | - |
| 2 | W715096 | Upper intake manifold bolt | REFER to Installation | - | - |
| 3 | 9424 | Upper intake manifold | - | - | - |
| 4 | 9H486 | Upper intake manifold gasket | - | - | - |
| 5 | W503275 | Upper intake manifold support bolt | 10 Nm (89 lb-in) | - | - |
