Exploded View

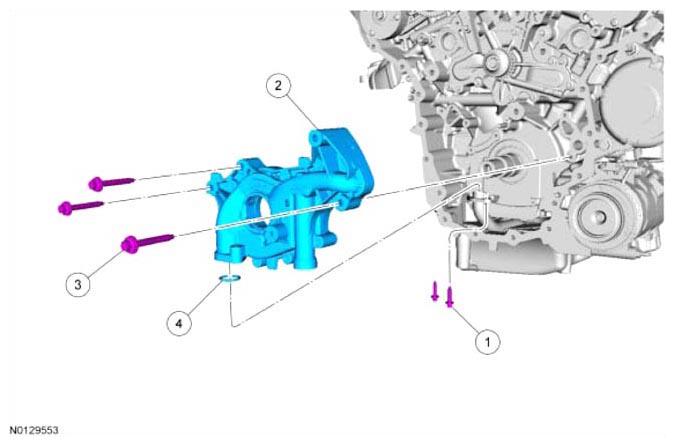

Fig 1: Exploded View Of Oil Pump

Courtesy of FORD MOTOR CO.

Item	Service Part Number	Description	Torque	Material Name	Notes
1	W503278	Oil pump screen and pickup tube bolts (2 required)	10 Nm (89 lb-in)	-	-
2	6621	Oil pump	-	-	-
3	W503282	Oil pump bolt (3 required)	10 Nm (89 lb-in)	-	-
4	6625	O-ring seal	-	-	-
