Exploded View

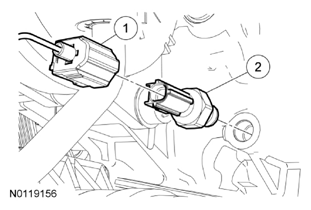

Fig 1: Identifying Engine Oil Pressure Switch And Electrical Connector
G07997748Courtesy of FORD MOTOR CO.
Item Service Part Number Description Torque Material Name Notes
1 - EOP switch electrical connector (part of 12A581) - - -
2 9278  EOP switch REFER to Installation  - -
