Exploded View

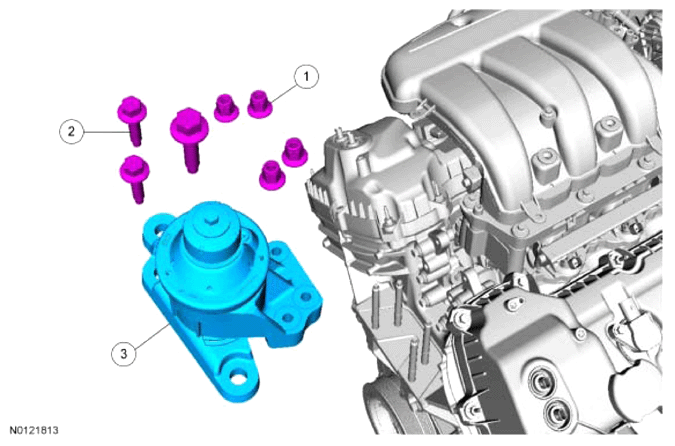

Fig 1: Exploded View Of Engine Mount
G08029544Courtesy of FORD MOTOR CO.
Item Service Part Number Description Torque Material Name Notes
1 W714682  Engine mount-to-engine nut (4 required) 63 Nm (46 lb-ft) - -
2 W712507  Engine mount-to-frame bolt (3 required) 90 Nm (66 lb-ft) - -
3 6038  Engine mount - - -
