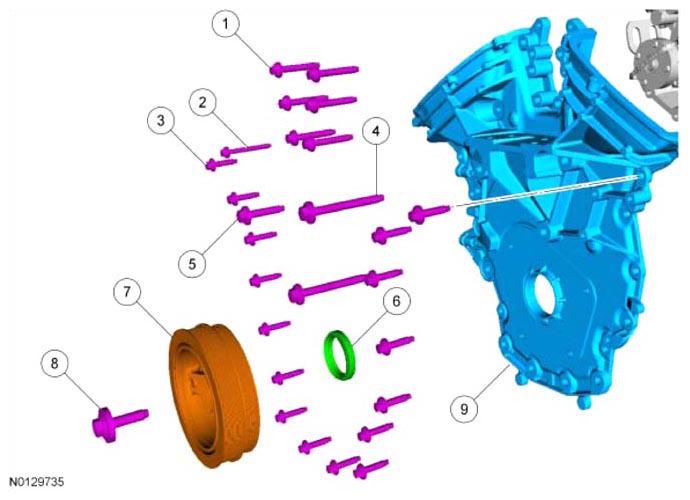

Exploded View
| Item | Service Part Number | Description | Torque | Material Name | Notes |
|---|---|---|---|---|---|
| 1 | W503301 | Engine front cover bolt (6 required) | REFER to Installation | - | - |
| 2 | W503285 | Engine front cover bolt | REFER to Installation | - | - |
| 3 | W503297 | Engine front cover bolt (16 required) | REFER to Installation | - | - |
| 4 | W714821 | Engine front cover bolt (2 required) | REFER to Installation | - | - |
| 5 | W714822 | Engine front cover bolt | REFER to Installation | - | - |
| 6 | 6700 | Crankshaft front seal | - | - | - |
| 7 | 6316 | Crankshaft pulley | - | - | - |
| 8 | W701512 | Crankshaft pulley bolt | REFER to Installation | - | - |
| 9 | 6019 | Engine front cover | - | - | - |
