Exploded View

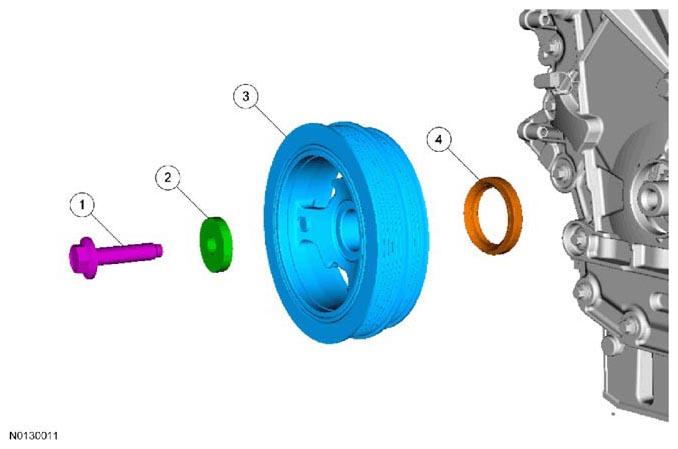

Fig 1: Exploded View Of Crankshaft Pulley And Crankshaft Front Seal
G07417570Courtesy of FORD MOTOR CO.
Item Service Part Number Description Torque Material Name Notes
1 6A340  Crankshaft pulley bolt REFER to Installation  - -
2 6378  Crankshaft pulley bolt washer - - -
3 6312  Crankshaft pulley - - -
4 6700  Crankshaft front seal - - -
