With IA
With IA

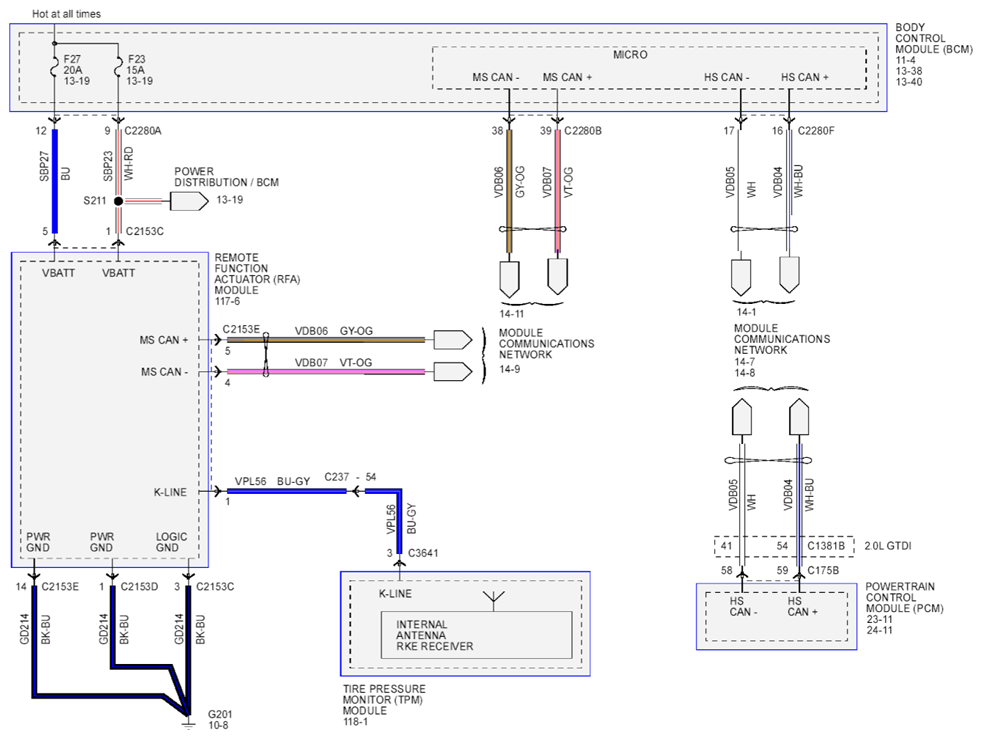

Fig 1: Passive Anti-Theft System Circuit Diagram (With IA) (1 Of 2)
Courtesy of FORD MOTOR CO.

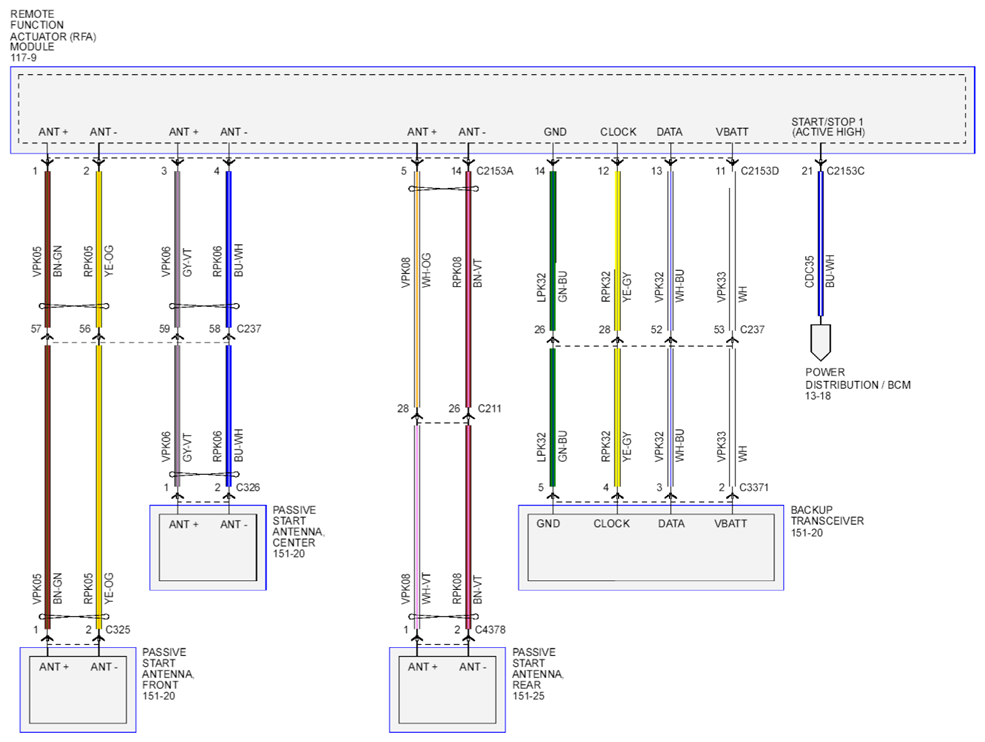

Fig 2: Passive Anti-Theft System Circuit Diagram (With IA) (2 Of 2)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
