Explorer Limited, 3.5 8, AWD
>>
Repair and Diagnosis
>>
Electrical
>>
Wiring Diagrams
>>
OEM Wiring Diagrams
>>
Wipers and Washers
Wipers and Washers

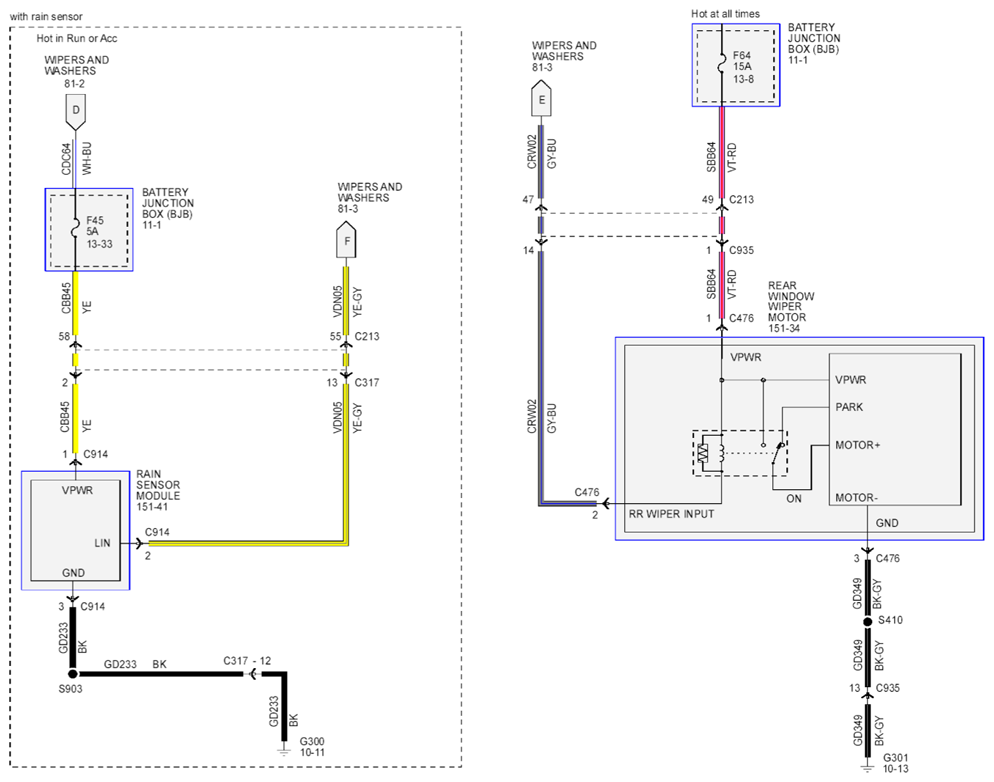

Fig 1: Wipers and Washers Circuit Diagram (View 1 Of 4)
Courtesy of FORD MOTOR CO.

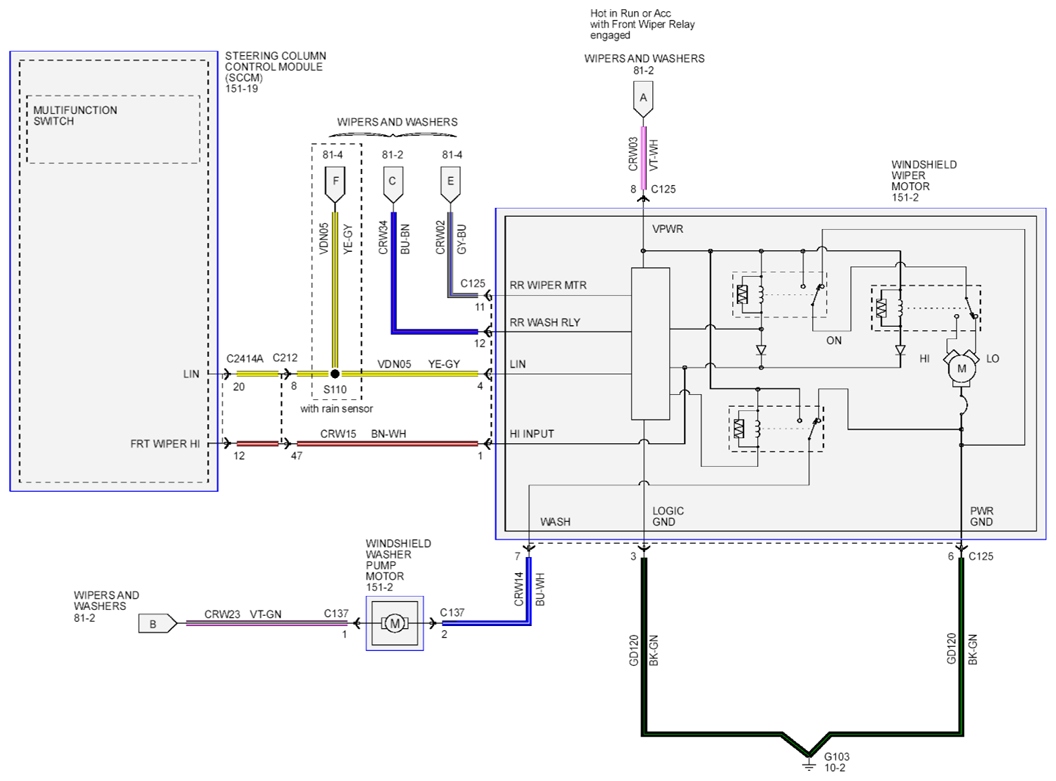

Fig 2: Wipers and Washers Circuit Diagram (View 2 Of 4)
Courtesy of FORD MOTOR CO.

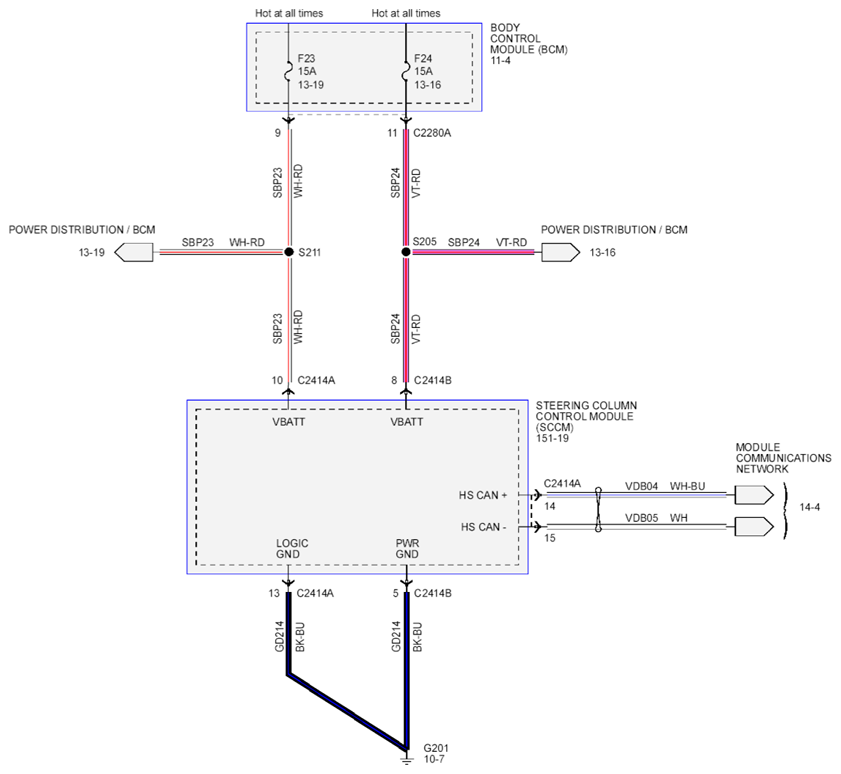

Fig 3: Wipers and Washers Circuit Diagram (View 3 Of 4)
Courtesy of FORD MOTOR CO.

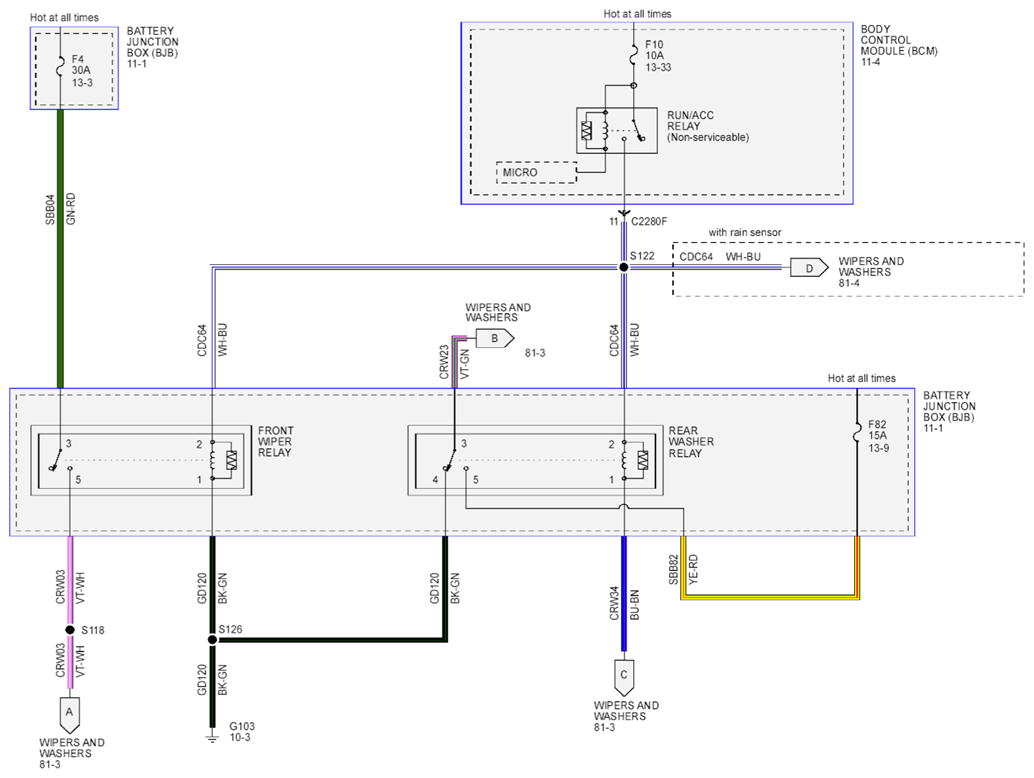

Fig 4: Wipers and Washers Circuit Diagram (View 4 Of 4)
Courtesy of FORD MOTOR CO.
