Explorer Limited, 3.5 8, AWD
>>
Repair and Diagnosis
>>
Electrical
>>
Wiring Diagrams
>>
OEM Wiring Diagrams
>>
Vehicle Dynamic Systems
Vehicle Dynamic Systems

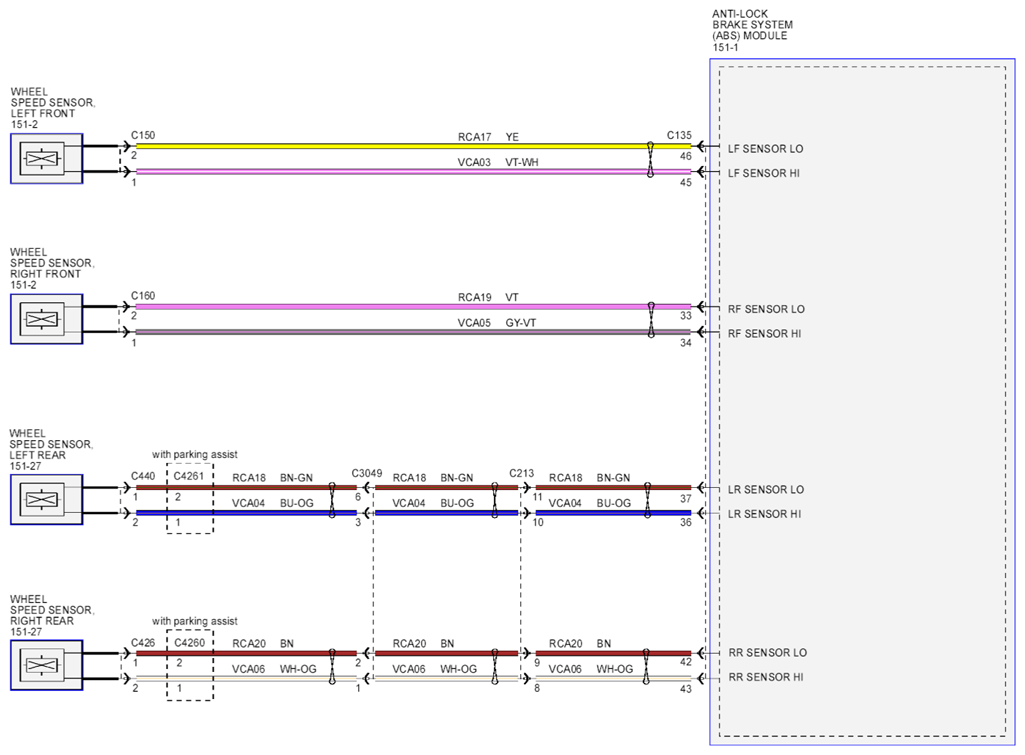

Fig 1: Vehicle Dynamic Systems Circuit Diagram (View 1 Of 3)
Courtesy of FORD MOTOR CO.

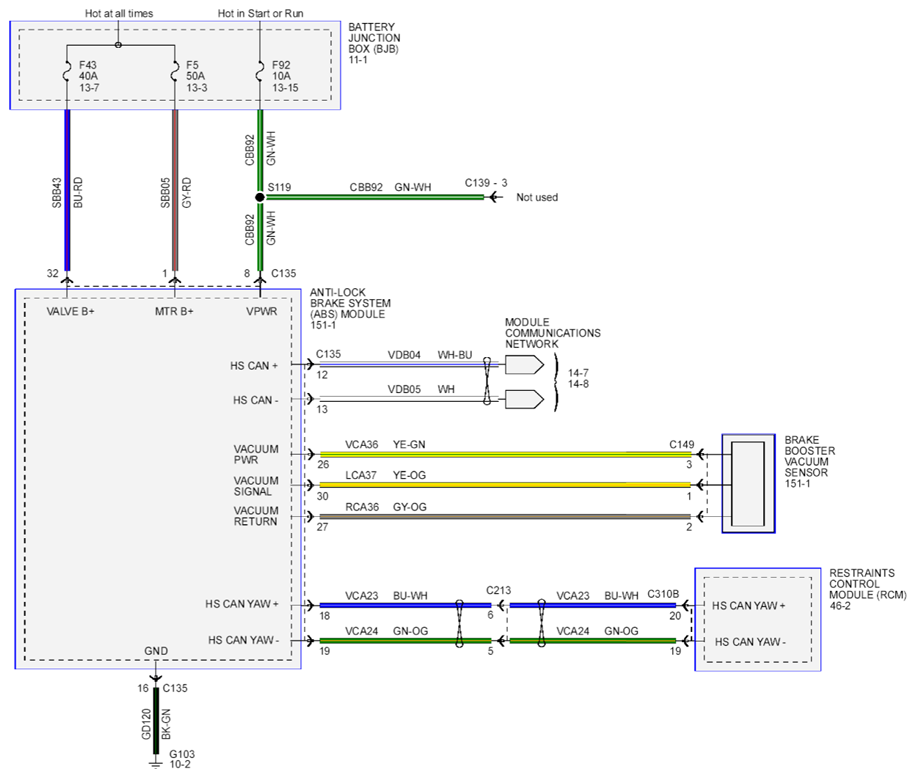

Fig 2: Vehicle Dynamic Systems Circuit Diagram (View 2 Of 3)
Courtesy of FORD MOTOR CO.

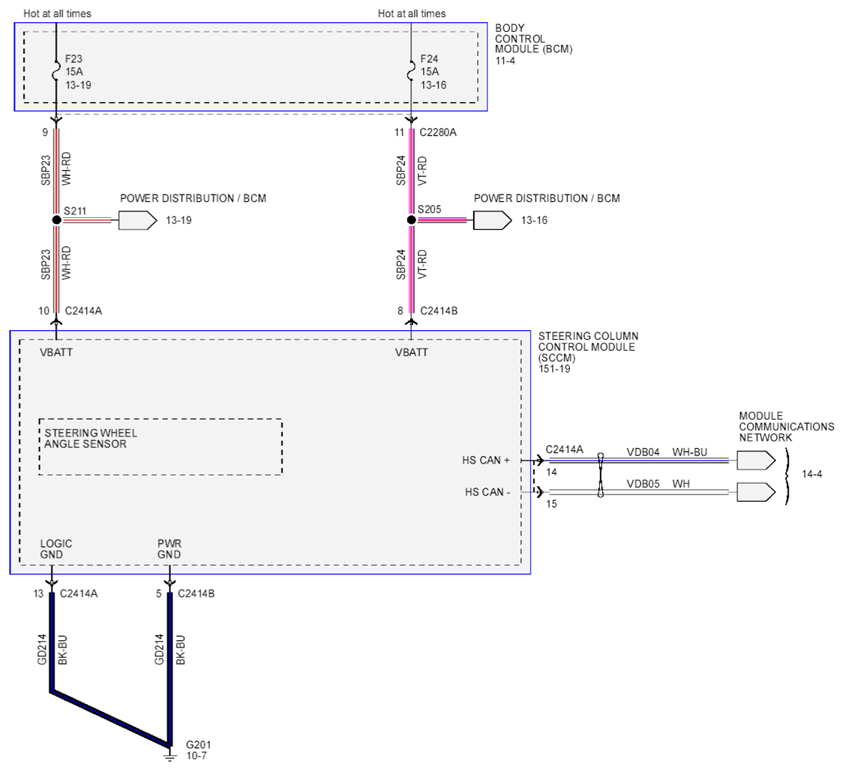

Fig 3: Vehicle Dynamic Systems Circuit Diagram (View 3 Of 3)
Courtesy of FORD MOTOR CO.

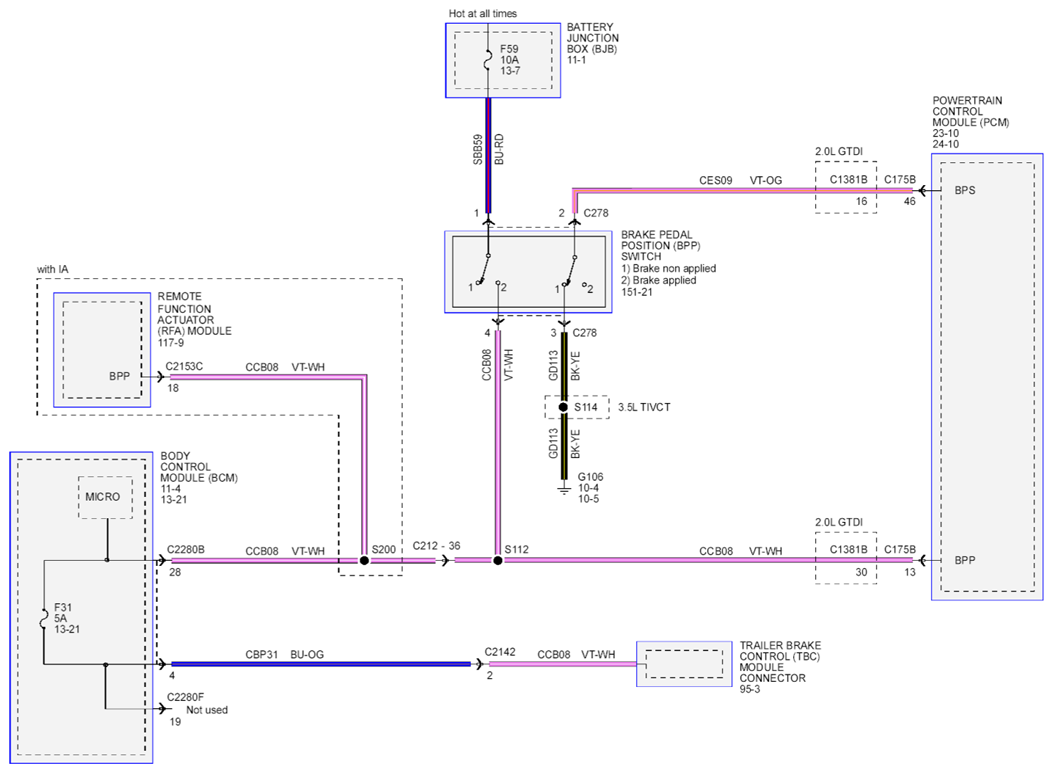

Fig 4: Vehicle Dynamic Systems Circuit Diagram (View 4 Of 3)
Courtesy of FORD MOTOR CO.
