Turn Signal_Stop_Hazard Lamps

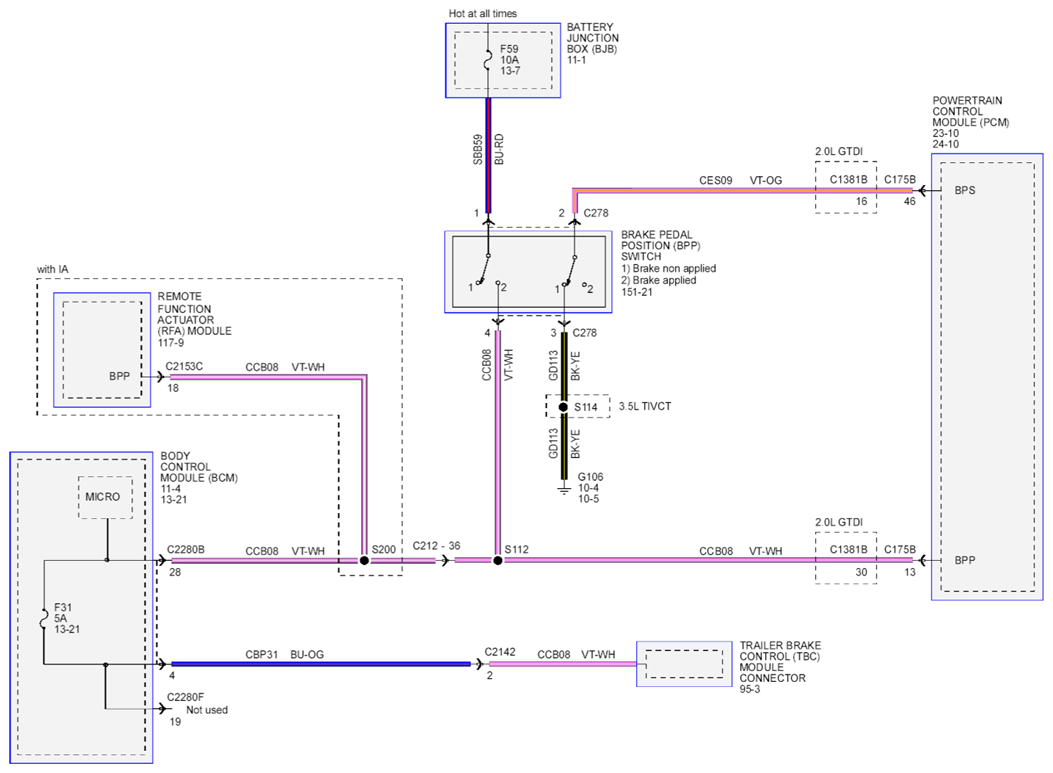

Fig 1: Turn Signal Stop Hazard Lamps Circuit Diagram (1 Of 6)

Courtesy of FORD MOTOR CO.

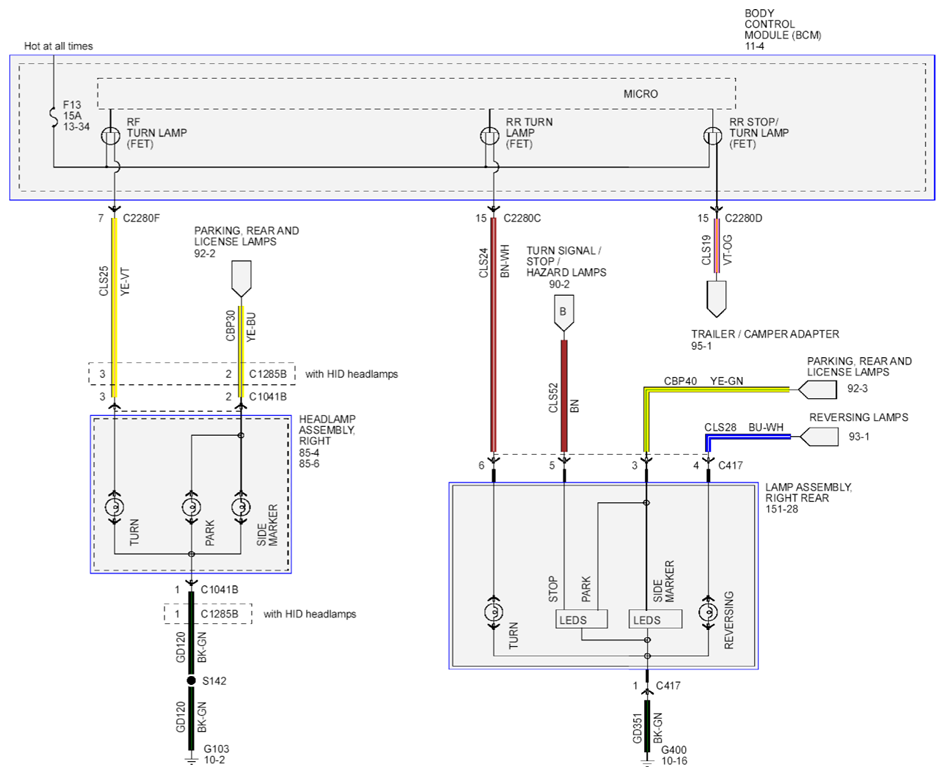

Fig 2: Turn Signal Stop Hazard Lamps Circuit Diagram (2 Of 6)

Courtesy of FORD MOTOR CO.

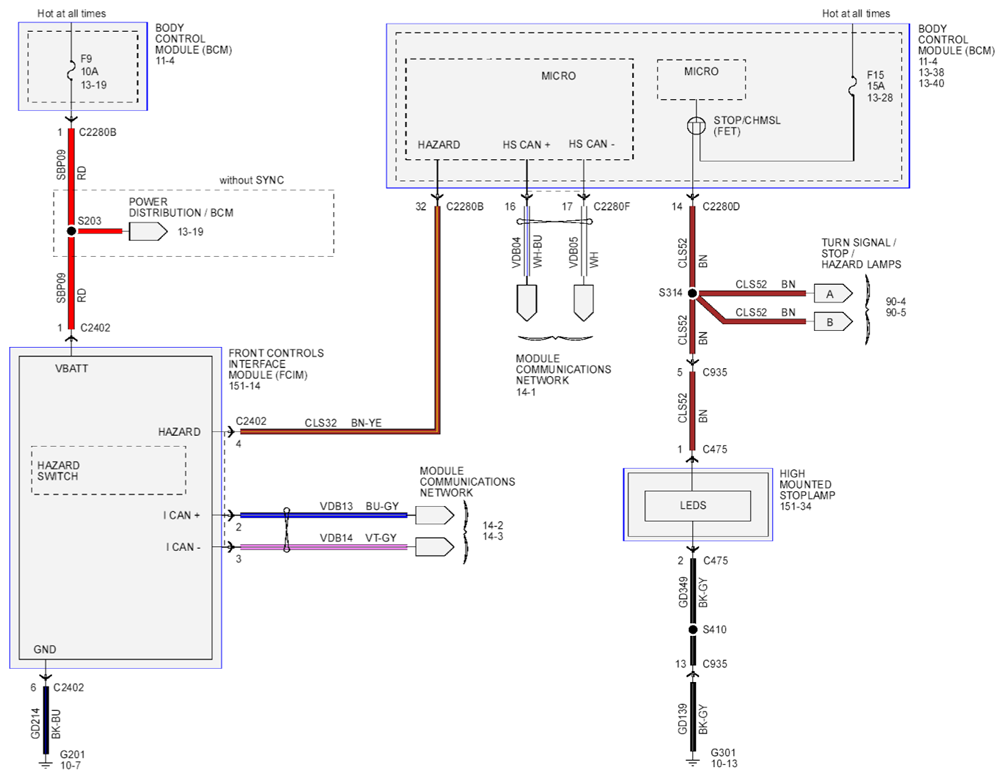

Fig 3: Turn Signal Stop Hazard Lamps Circuit Diagram (3 Of 6)

Courtesy of FORD MOTOR CO.

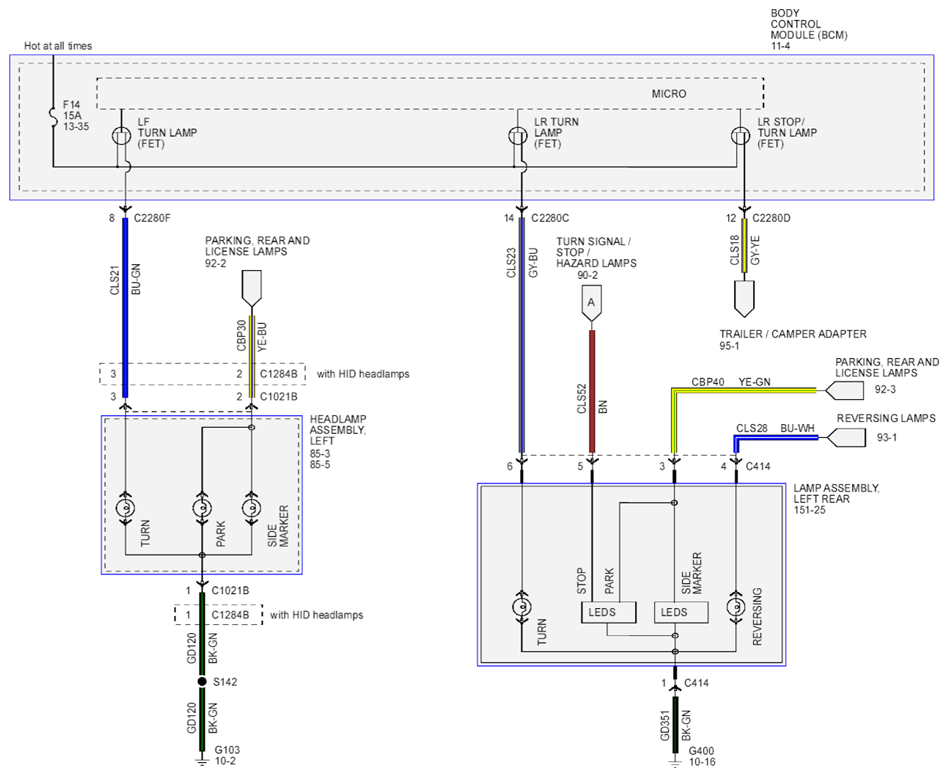

Fig 4: Turn Signal Stop Hazard Lamps Circuit Diagram (4 Of 6)

Courtesy of FORD MOTOR CO.

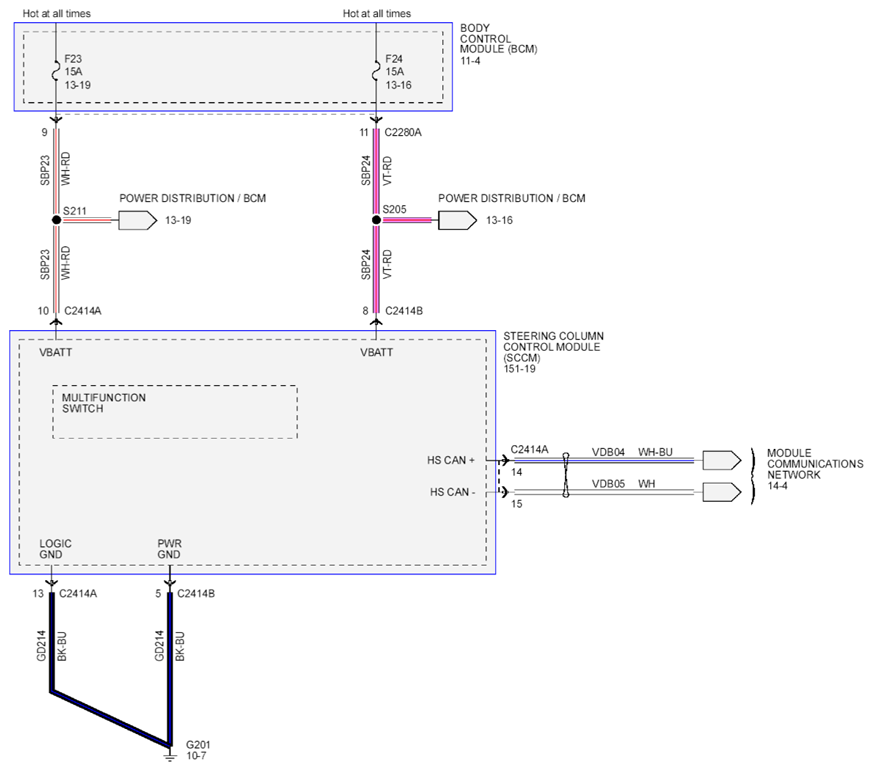

Fig 5: Turn Signal Stop Hazard Lamps Circuit Diagram (5 Of 6)

Courtesy of FORD MOTOR CO.

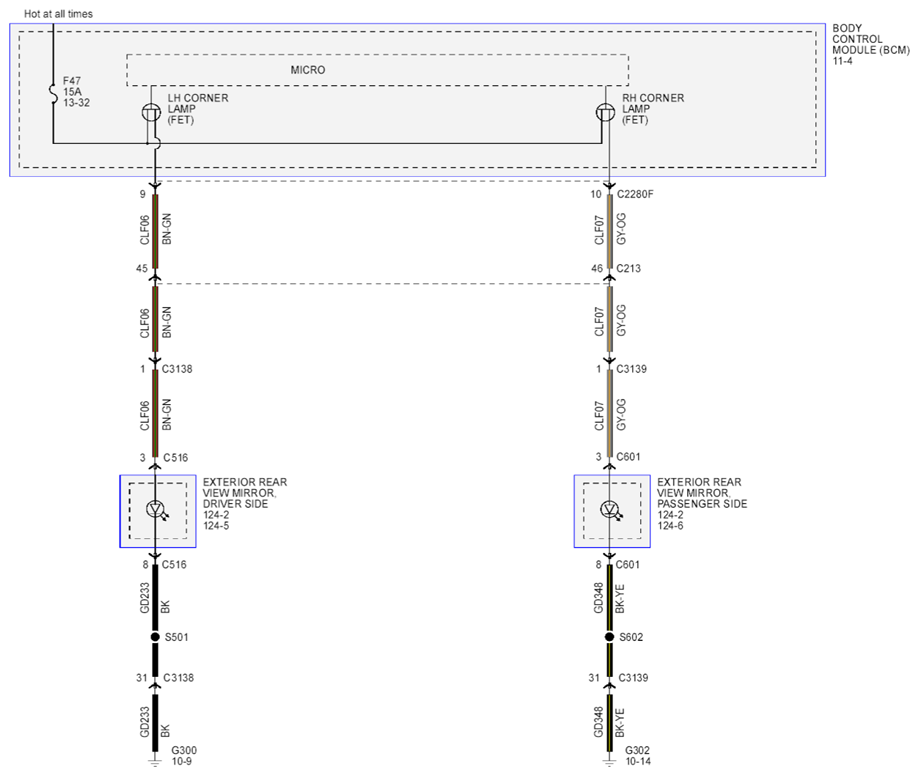

Fig 6: Turn Signal Stop Hazard Lamps Circuit Diagram (6 Of 6)

Courtesy of FORD MOTOR CO.
