Transmission Controls - 6F50_6F55

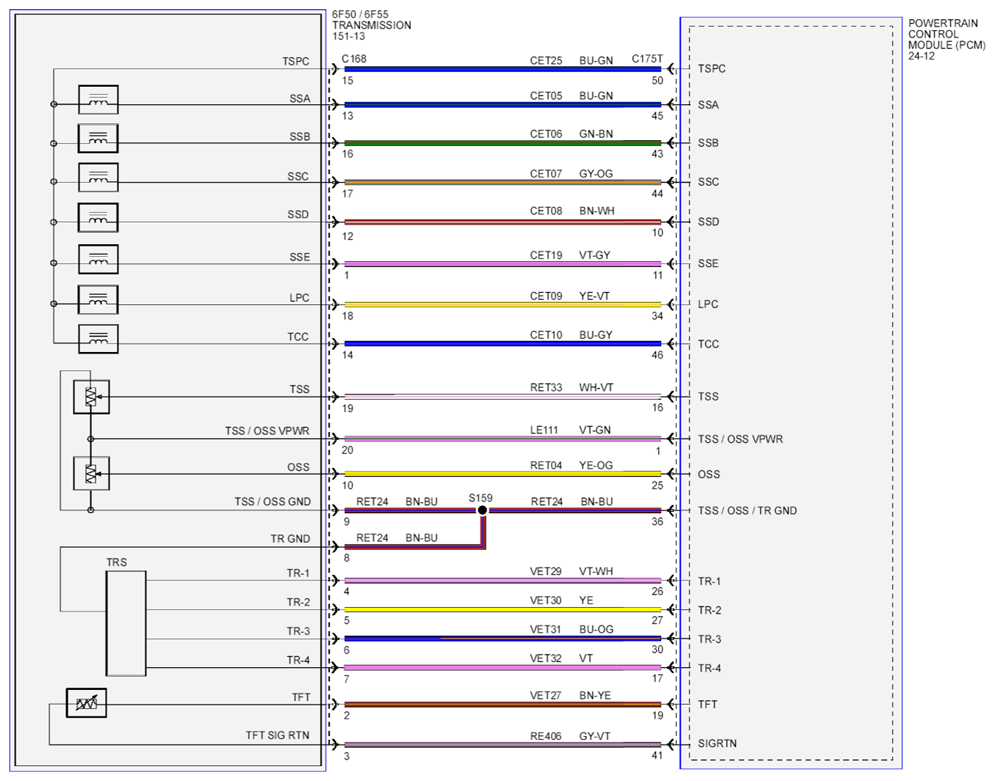

Fig 1: Transmission ControlsCircuit Diagram (6F50 6F55) (View 1 Of 3)
G07895367Courtesy of FORD MOTOR CO.

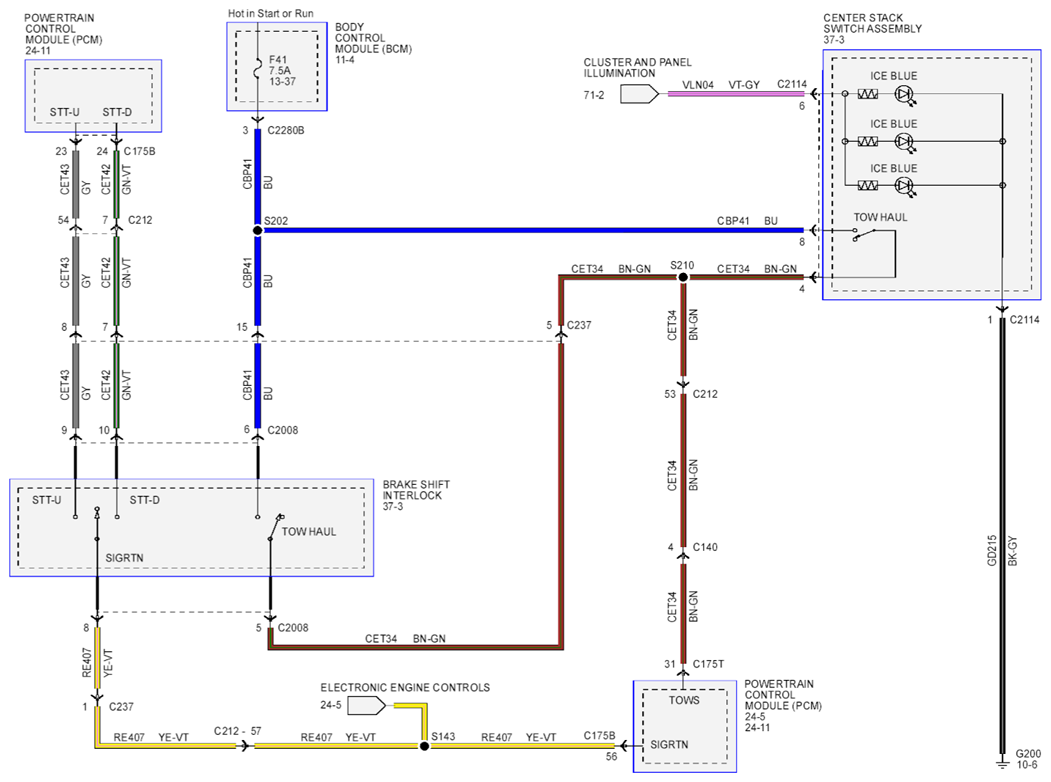

Fig 2: Transmission Controls Circuit Diagram (6F50 6F55) (View 2 Of 3)
G07895368Courtesy of FORD MOTOR CO.

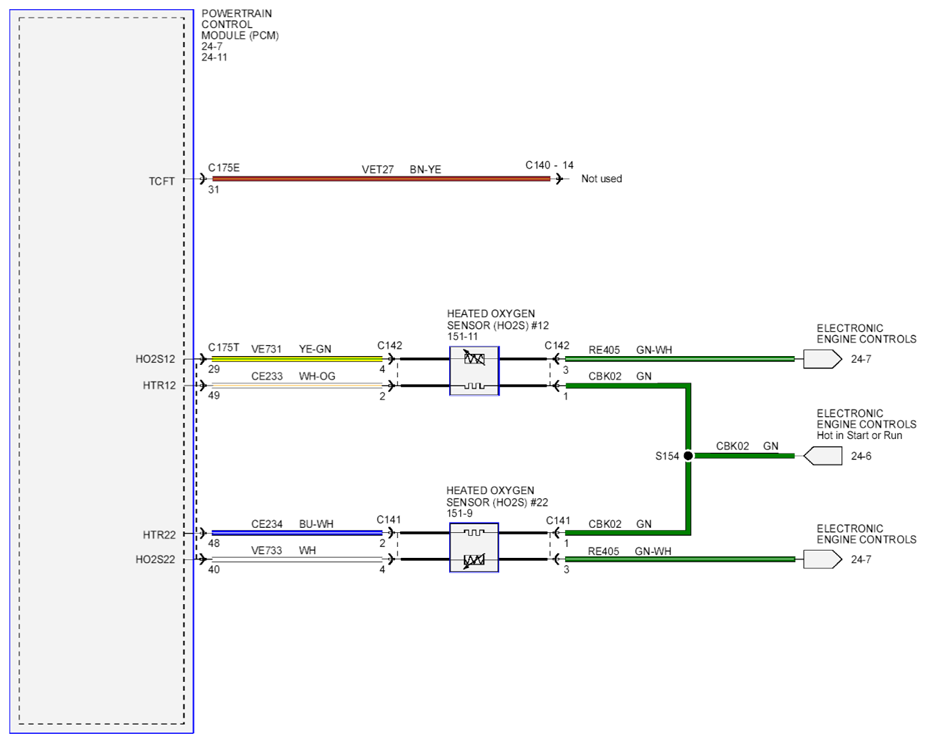

Fig 3: Transmission Controls Circuit Diagram (6F50 6F55) (View 3 Of 3)
G07895369Courtesy of FORD MOTOR CO.
