Trailer_Camper Adapter

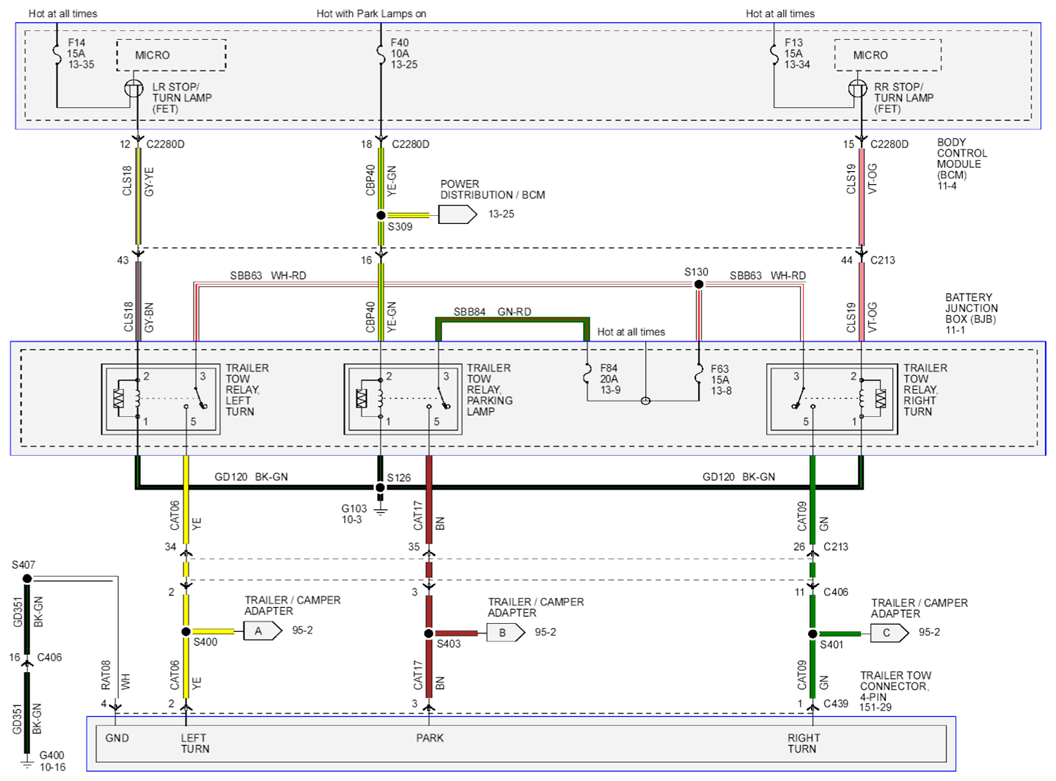

Fig 1: Trailer Camper Adapter Circuit Diagram (1 Of 3)
G07895461Courtesy of FORD MOTOR CO.

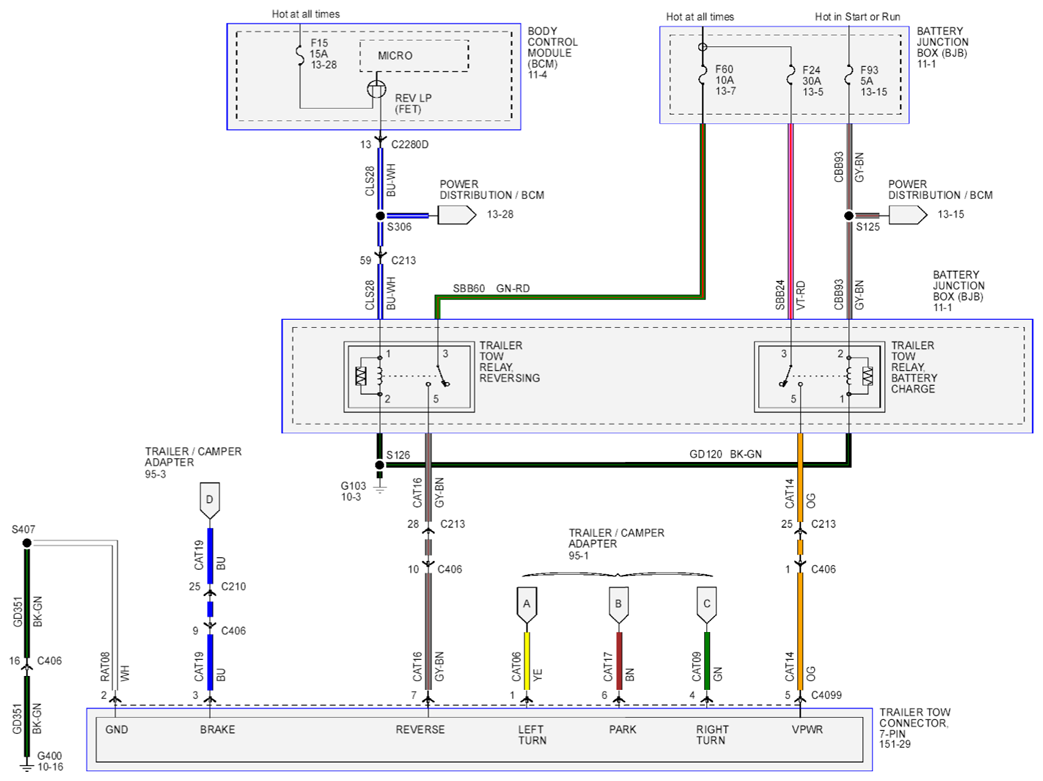

Fig 2: Trailer Camper Adapter Circuit Diagram (2 Of 3)
G07895462Courtesy of FORD MOTOR CO.

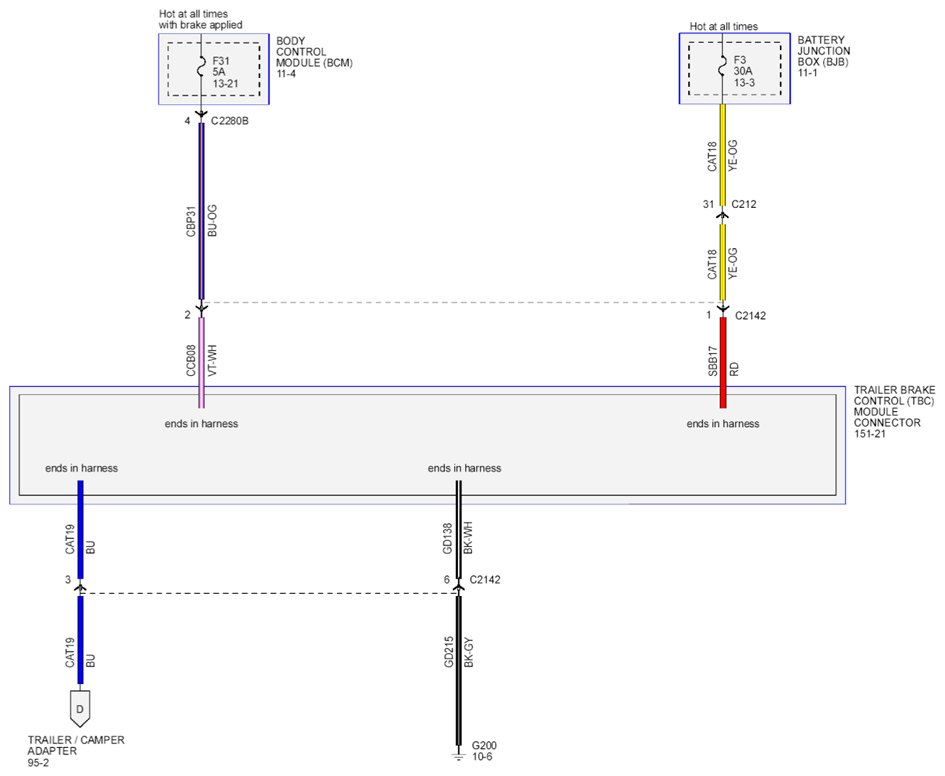

Fig 3: Trailer Camper Adapter Circuit Diagram (3 Of 3)
G07895463Courtesy of FORD MOTOR CO.
