Explorer Limited, 3.5 8, AWD
>>
Repair and Diagnosis
>>
Electrical
>>
Wiring Diagrams
>>
OEM Wiring Diagrams
>>
Tire Pressure Monitor System
Tire Pressure Monitor System

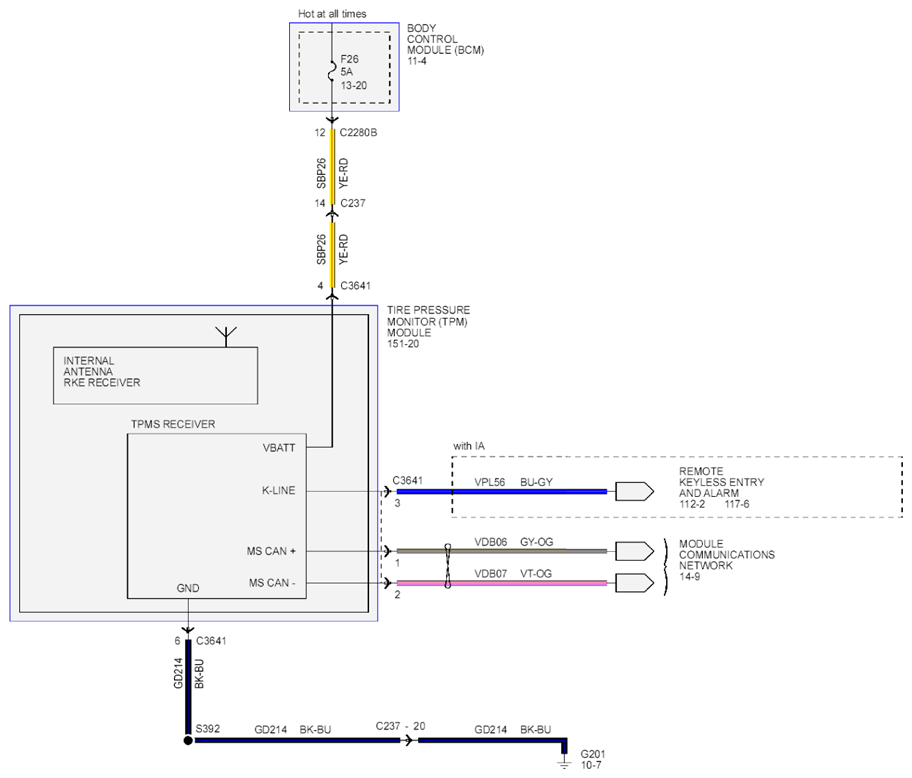

Fig 1: Tire Pressure Monitor System Circuit Diagram
