Supplemental Restraint System
>>
With Rear Inflatable Safety Belts
With Rear Inflatable Safety Belts

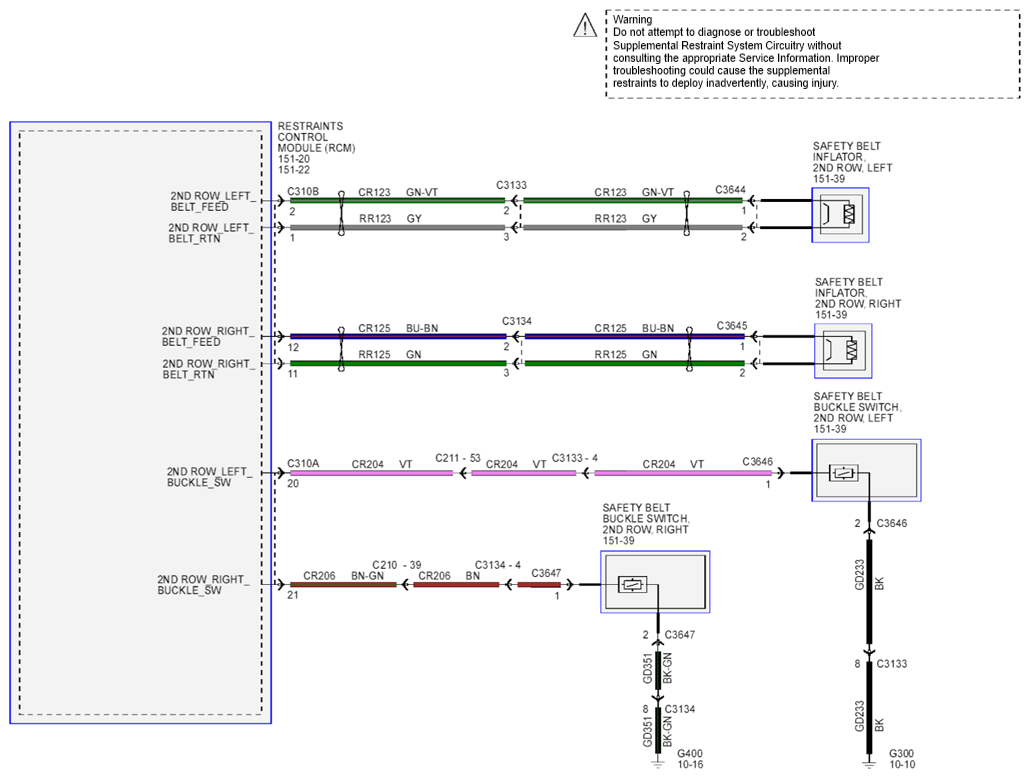

Fig 1: Supplemental Restraint System Circuit Diagram (With Rear Inflatable Safety Belts) (View 8 Of 8)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
