Home >> Ford >> 2012 >> Explorer Limited, 3.5 8, AWD >> Repair and Diagnosis >> Electrical >> Wiring Diagrams >> OEM Wiring Diagrams >> Starting System >> Without IA

Without IA

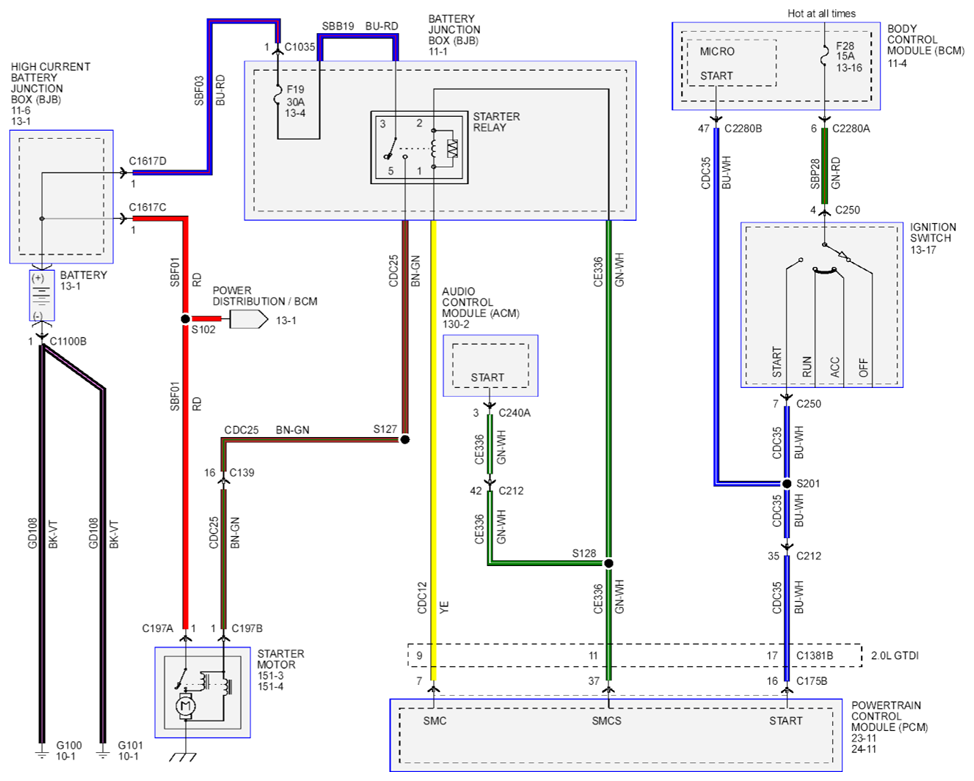

Fig 1: Starting System Circuit Diagram (Without IA)

G07895342

Courtesy of FORD MOTOR CO.
