Ford
>>
2012
>>
Explorer Limited, 3.5 8, AWD
>>
Repair and Diagnosis
>>
Electrical
>>
Wiring Diagrams
>>
OEM Wiring Diagrams
>>
Starting System
>>
With IA
With IA

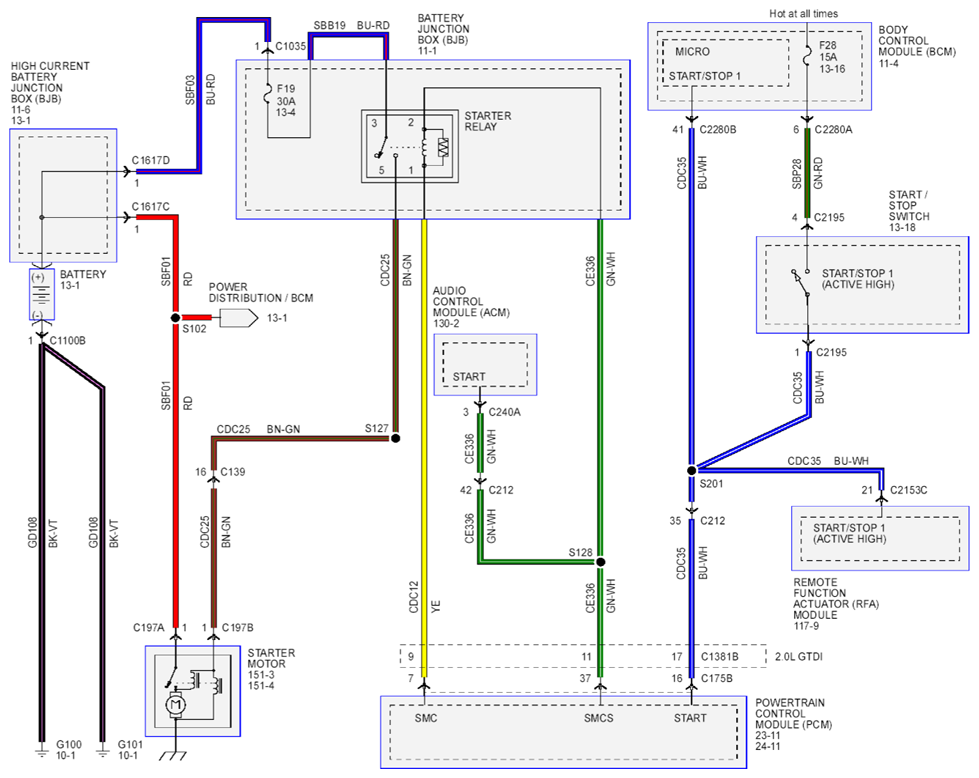

Fig 1: Starting System Circuit Diagram (With IA)
Courtesy of FORD MOTOR CO.
