Ford
>>
2012
>>
Explorer Limited, 3.5 8, AWD
>>
Repair and Diagnosis
>>
Electrical
>>
Wiring Diagrams
>>
OEM Wiring Diagrams
>>
Shift Interlock
>>
Without IA
Without IA

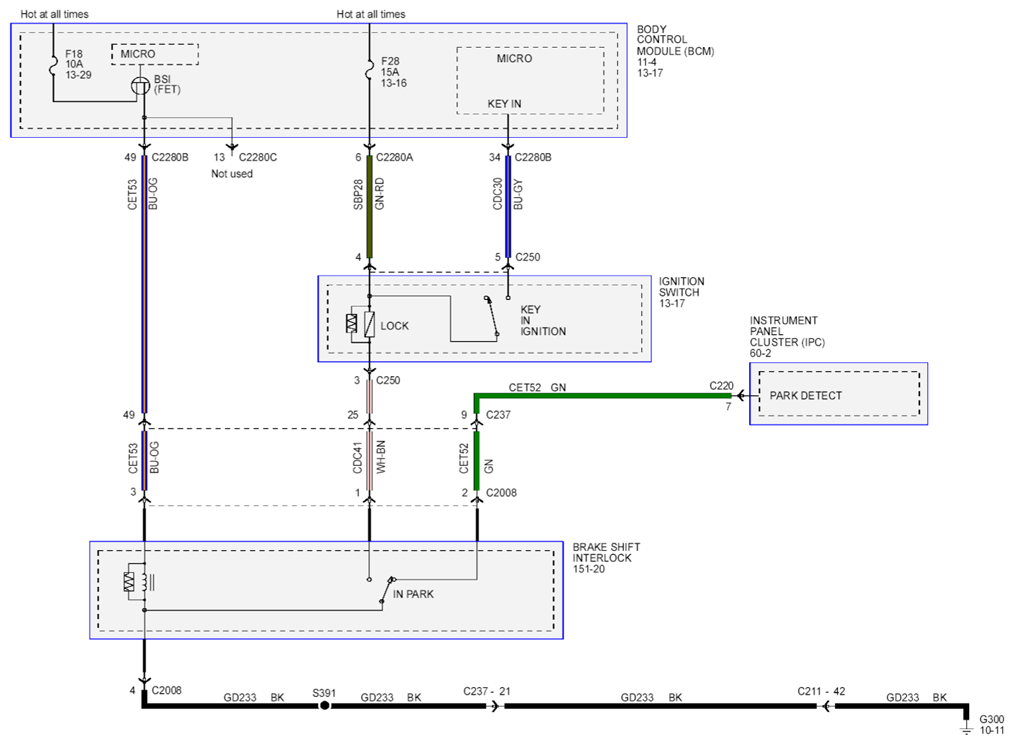

Fig 1: Shift Interlock (Without IA) Circuit Diagram (View 1 Of 3)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
