Explorer Limited, 3.5 8, AWD
>>
Repair and Diagnosis
>>
Electrical
>>
Wiring Diagrams
>>
OEM Wiring Diagrams
>>
Reversing Lamps
Reversing Lamps

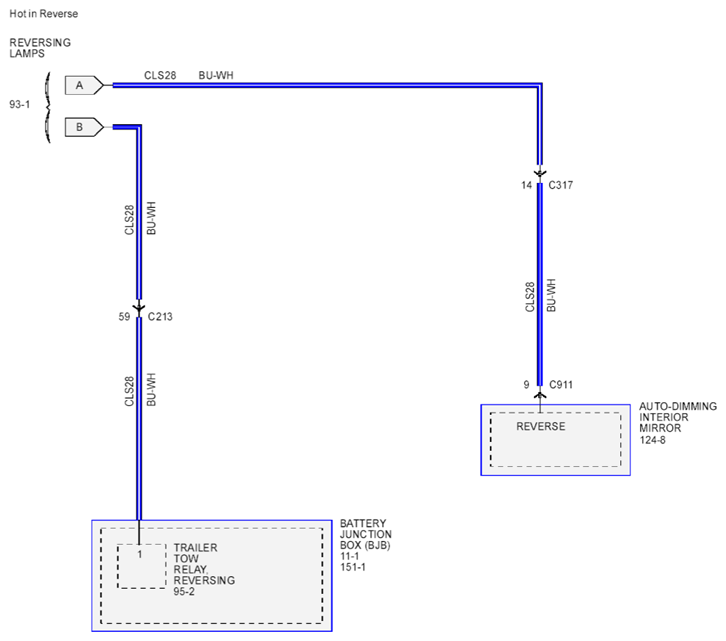

Fig 1: Reversing Lamps Circuit Diagram (1 Of 2)
Courtesy of FORD MOTOR CO.

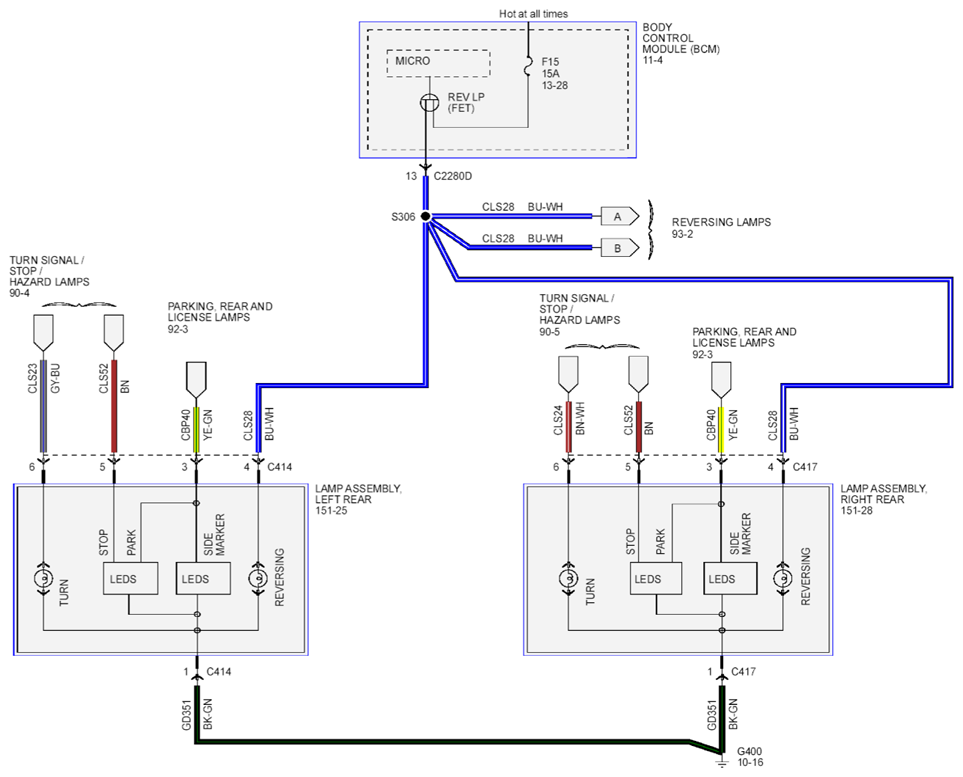

Fig 2: Reversing Lamps Circuit Diagram (2 Of 2)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
