Home >> Ford >> 2012 >> Explorer Limited, 3.5 8, AWD >> Repair and Diagnosis >> Electrical >> Wiring Diagrams >> OEM Wiring Diagrams >> Remote Keyless Entry and Alarm >> Without Memory

Without Memory

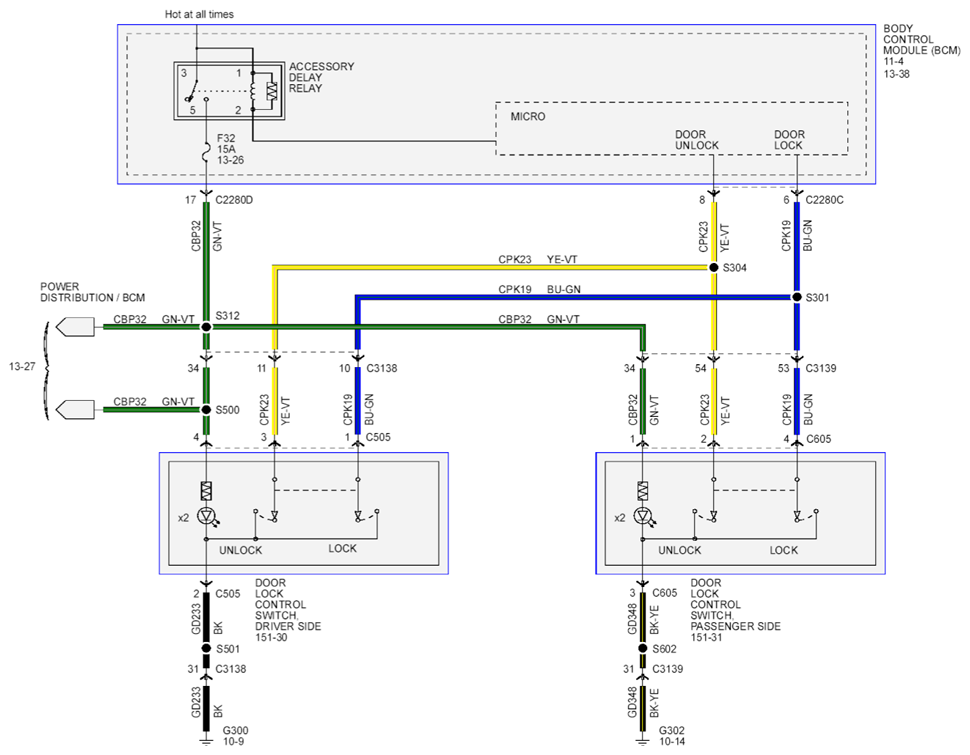

Fig 1: Remote Keyless Entry And Alarm Circuit Diagram (Without Memory)

G07895480

Courtesy of FORD MOTOR CO.
