Ford
>>
2012
>>
Explorer Limited, 3.5 8, AWD
>>
Repair and Diagnosis
>>
Electrical
>>
Wiring Diagrams
>>
OEM Wiring Diagrams
>>
Remote Keyless Entry and Alarm
>>
With Memory
With Memory

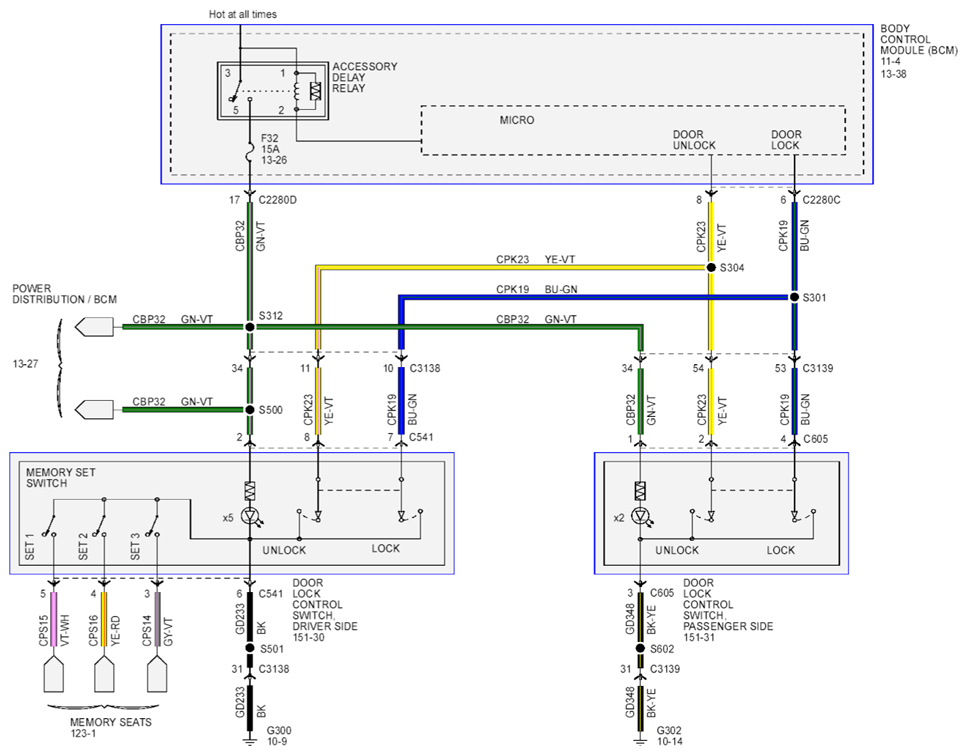

Fig 1: Remote Keyless Entry And Alarm Circuit Diagram (With Memory)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
