Repair and Diagnosis
>>
Electrical
>>
Wiring Diagrams
>>
OEM Wiring Diagrams
>>
Remote Keyless Entry and Alarm
>>
Manual Liftgate
Manual Liftgate

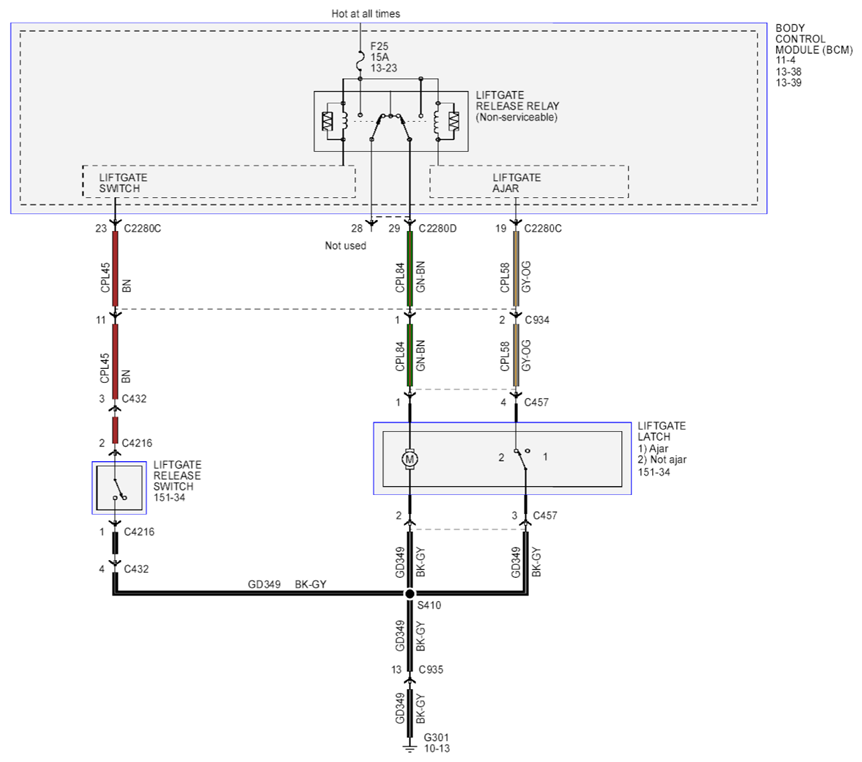

Fig 1: Remote Keyless Entry And Alarm Circuit Diagram (Manual Liftgate)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
