Explorer Limited, 3.5 8, AWD
>>
Repair and Diagnosis
>>
Electrical
>>
Wiring Diagrams
>>
OEM Wiring Diagrams
>>
Power Windows
>>
Base
Power Windows: Base

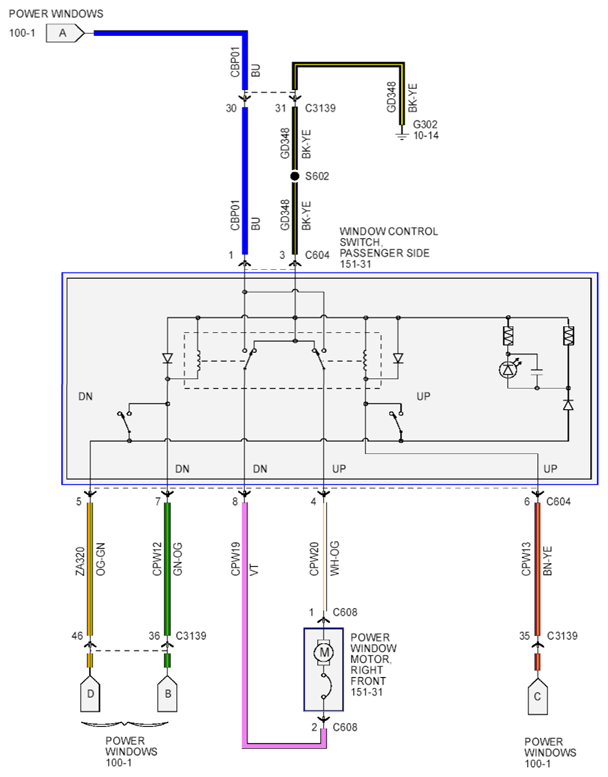

Fig 1: Power Windows Circuit Diagram (Base) (1 Of 2)
Courtesy of FORD MOTOR CO.

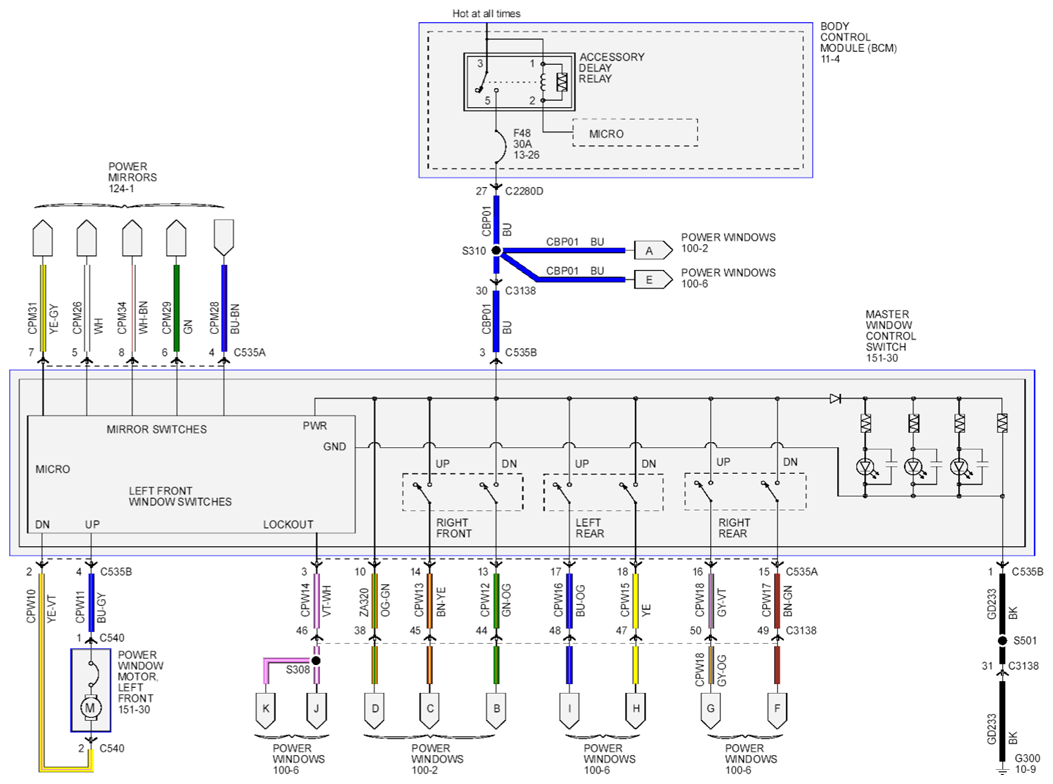

Fig 2: Power Windows Circuit Diagram (Base) (2 Of 2)
Courtesy of FORD MOTOR CO.
