10-Way Power Seat Without Memory - Driver

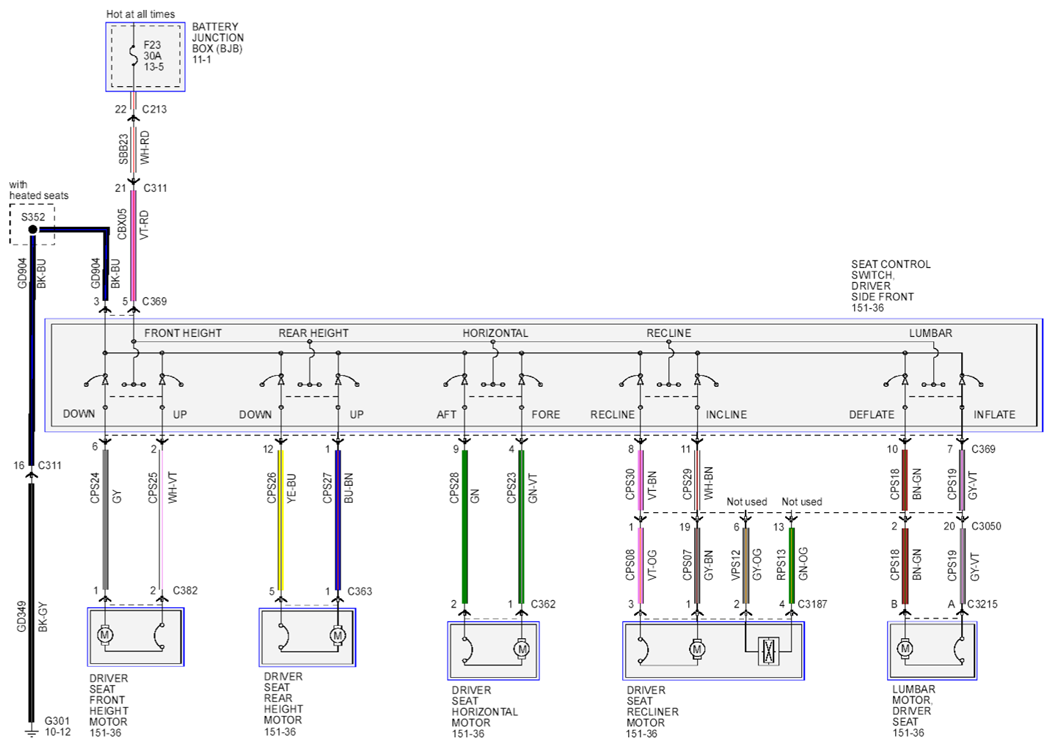

Fig 1: Power Seats Circuit Diagram (6-Way Power Seat Without Memory - Driver)

G07895498

Courtesy of FORD MOTOR CO.
