Wiring Diagrams
>>
OEM Wiring Diagrams
>>
Power Seats
>>
10-Way Power Seat Passenger
10-Way Power Seat Passenger

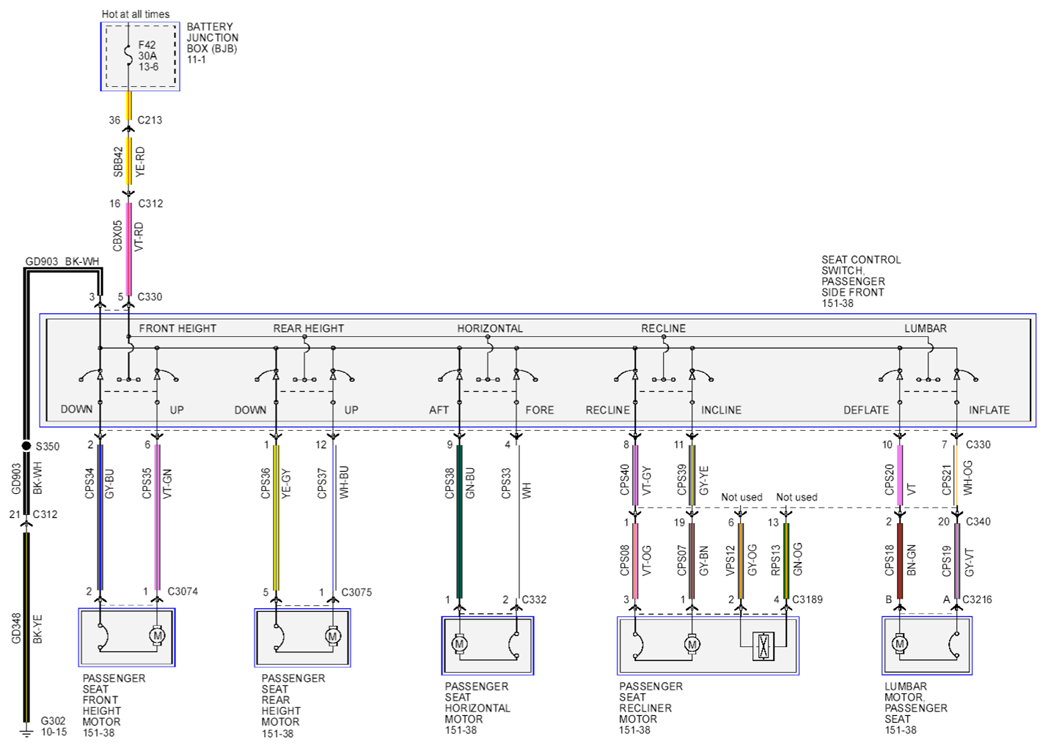

Fig 1: Power Seats Circuit Diagram (10-Way Power Seat Passenger)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
