Power Mirrors: XLT

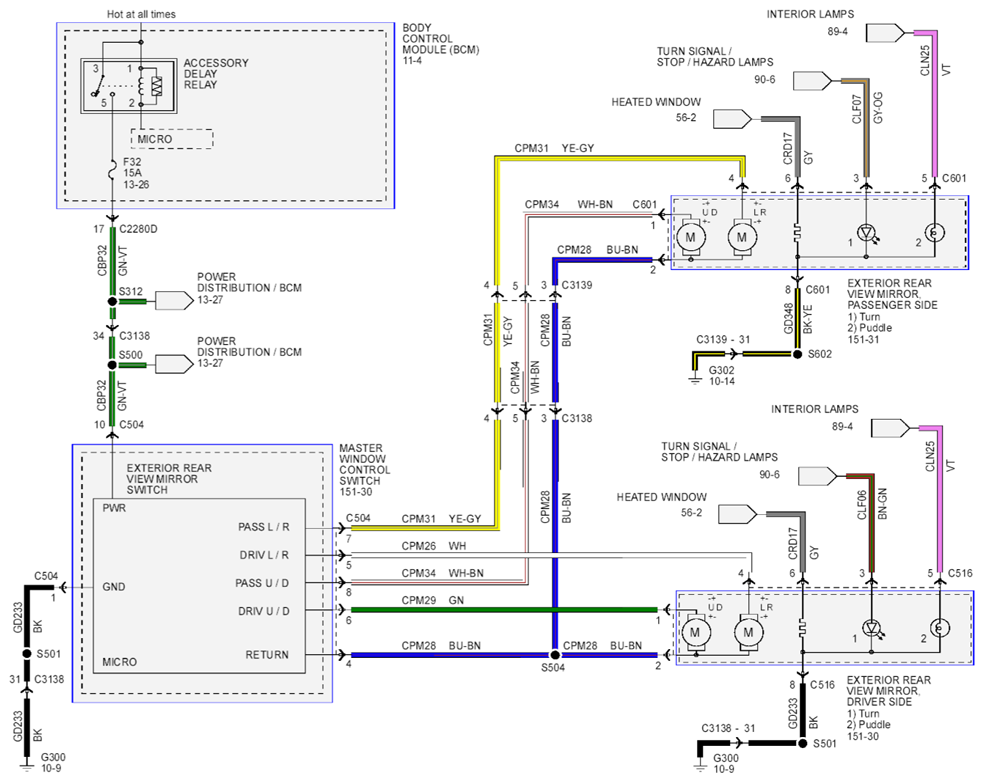

Fig 1: Power Mirrors Circuit Diagram (XLT)

G07895511

Courtesy of FORD MOTOR CO.
