Power Mirrors: Base

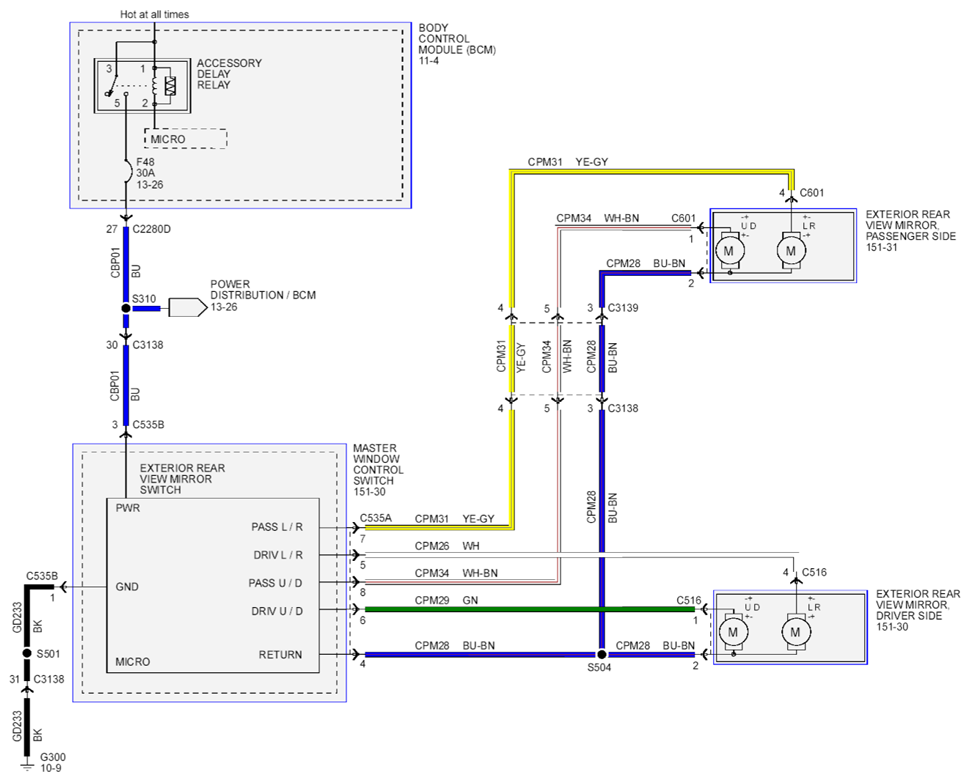

Fig 1: Power Mirrors Circuit Diagram (Base)

G07895510

Courtesy of FORD MOTOR CO.
